Stainless Steel Reverse Wedge Wire Basket With High Corrosion Resistance

Stainless Steel Reverse Wedge Wire Basket With High Corrosion Resistance
Stainless Steel Reverse Wedge Wire Basket With High Corrosion Resistance Stainless Steel Reverse Wedge Wire Basket With High Corrosion Resistance

Large Image :  Stainless Steel Reverse Wedge Wire Basket With High Corrosion Resistance

Product Details:
Place of Origin: Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: HY0010
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: according to the specifications
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000pcs/Month
Contact Now
Detailed Product Description
Material: Stainless Steel Grade: 304
Slot Size: 1.0 Mm Diameter: 520 Mm
Length: 600 Mm Components: None, As The Customer's Requirement
Package: Woden Box,Container
Highlight:

wire cylinder basket

,

rotary sand screen

Stainless Steel Reverse Wedge Wire Basket With High Corrosion Resistance
Product Specifications
Attribute Value
Material Stainless steel
Grade 304
Slot size 1.0 mm
Diameter 520 mm
Length 600 mm
Components None, as the customer's requirement
Package Woden box, Container
Product Description

Stainless steel Reverse Wedge Wire Wound Screen Drum Heat FITO Filter Cylinder Basket is made by Johnson screen mesh through reverse welding.

From inside to outside (FITO): Whereas, the liquid flow from inside to outside. It is with v-shaped cross-section of the stainless steel wire welded on framework, precision filter slot formed between every two adjacent wrap wire, facilitate the back flush filter residue can be ruled out smoothly, to achieve continuous water supply function.

Detailed Specifications
Material Stainless steel
Grade 316L
I.D 150-1000 mm, 400 MM
Slot Size 0.1 - 30 mm, 0.75 mm
Components None
Length 300-3000mm, 500 mm
Filter type From inside to outside
Wire size 2*3.5 mm
Support rod 3*4.6 mm
Wire shape V shape
Regular Specifications
  • Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
  • I.D.: 150 - 1000 MM
  • Slot: 0.1mm - 35mm
  • Discrepancy: + / - 0.05mm
  • Length: 300mm-3000mm
  • Filter Type: from inside to outside
  • Slot type: Inside circle wire and slot. inside vertical wire and slot
  • Other components: Flange, stiffener, lifting handle, and other type components by request
Wire and Rod Sizes
Wire Width(mm) Height(mm)
1.0 2.0
1.2 2.2
1.5 2.5
2.3 3.5
3.0 4.6
Rod Width(mm) Height(mm)
Round wire 2.3 2.7
2.3 3.5
3.0 4.6
3.7 5.6
3.3 6.3
Diameter 0.25-0.5m

Special specification can be made according to your need.

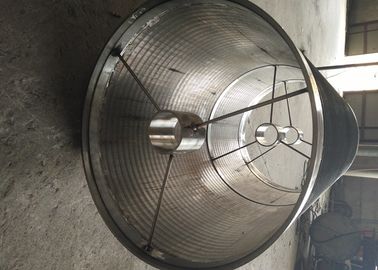

Stainless Steel Reverse Wedge Wire Basket With High Corrosion Resistance 0
Key Benefits
Not easy to jam: The special V shaped wire makes the hole of screen outside face smaller than inside, so the hole is not easy to jam.
Slot even: The CNC machine tools strictly control the gap between the wire, so that the gap is even.
Strong corrosion resistance: Stainless steel has high corrosion resistance.
Easy to backwash: Filter from inside to outside, and the outside slot is bigger than inside slot, so it is easy to back flush.
Built-in scraper, brush, suction first class cleaning device.
Industry Applications
  • Trommel screens with internal feed
  • Systems with an internal rotor or screw
  • Dewatering systems
  • Baskets
  • Automatic filters
  • Fecal treatment
Product Images

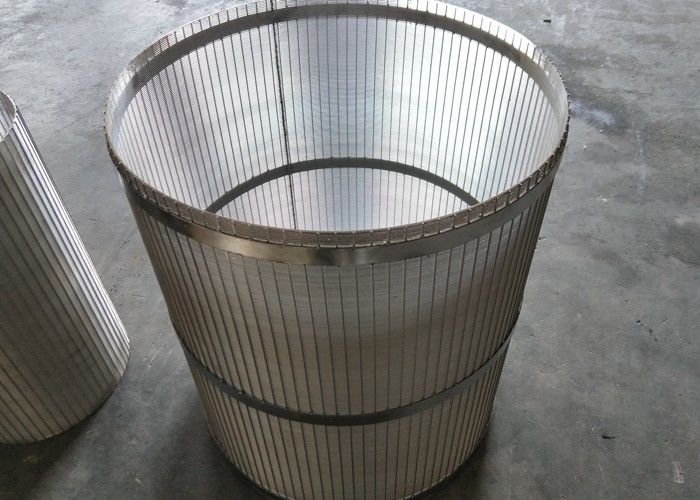

Stainless Steel Reverse Wedge Wire Basket With High Corrosion Resistance 1

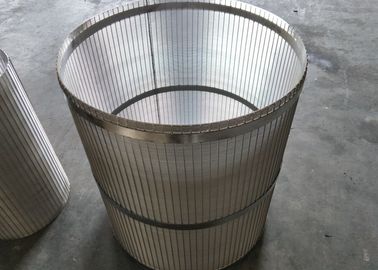

Stainless Steel Reverse Wedge Wire Basket With High Corrosion Resistance 2
Stainless Steel Reverse Wedge Wire Basket With High Corrosion Resistance 3
Stainless Steel Reverse Wedge Wire Basket With High Corrosion Resistance 4
