| Features: | Non-clogging | Name: | Wedge Welding Wire Screen Arc Panel |
|---|---|---|---|
| Material: | Low Carbon Galvanized ,stainless Steel | Application: | Filteration |
| Package: | Wooden Boxes ,container | ||
| Highlight: | wedge wire sheets,stainless steel wedge wire grates |
||

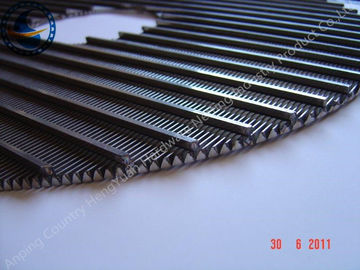

Wedge Welding Wire Screen Arc Panel ,Vee Shape Wire Welded product
Wedge wire sieve bends are made of stainless steel wedge wires.
They are consist of a concave curved profile wire screen, which are inserted into a stainless steel frame.
The wedge wire sieve bends are manufactured by wrapping and welding stainless steel V-shaped profile wire and support rods.
Then the panel screens are cutting and curved into arc screen.
The wedge wire sieve bends have continuous slots, which has efficient filtering performance.
Forces exerted as materials flows against the curved surface, curved screen structure has better filtering and greater capacity than the wedge wire screen panel.
| Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 |
| Note: other specifications available as per request | |
| Slot size | 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
| Material: | galvanized low carton (LCG), stainless steel (304,316 etc.) |
| Length | 1.5 meter |
| Width | from 25mm to 1200mm. |
| Radian | 120º |
| End connection | Plain beveled ends, flanged or threaded couplings |
