Heat Resistant Wedge Wire Screen Panels For Aquaculture / Food Industry

Heat Resistant Wedge Wire Screen Panels For Aquaculture / Food Industry
Heat Resistant Wedge Wire Screen Panels For Aquaculture / Food Industry Heat Resistant Wedge Wire Screen Panels For Aquaculture / Food Industry

Large Image :  Heat Resistant Wedge Wire Screen Panels For Aquaculture / Food Industry

Product Details:
Place of Origin: Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: HY004
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Moister-Barrier with each piece,64pcs per 20 ft container
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Material: Stainless Steel Grade: 304
Slot Size: 0.7mm Diameter: 300 Mm + 450 Mm
Length: 500 Mm End Connection: Weld
Package: Woden Box,Container
High Light:

wedge wire sheets

,

stainless steel wedge wire grates

Stainless Steel 304 Johnson Wedge Wire Screen Plate 30 Slot To Seiving





Product Description:



Stainless Steel 304 Johnson Wedge Wire Screen Plate 30 Slot To Seiving is welded by V wire and support rod.There is a fixed value slot between each v wire. The support bar can be a round wire or a triangular wire or a trapezoidal wire. The sieve is a triangular wire (v-shaped silk). The slit size is accurate and the filtering precision is high.It has the advantages of strong structure, high ventilation efficiency, good heat dissipation, high temperature resistance, corrosion resistance, good mechanical properties, long service life, safe and reliable.

It has high strength, stiffness and bearing capacity, and can be used as a rigid screening filter for various shapes.This product is made of advanced fusion welding technology. The screen has the highest screening efficiency, the strongest anti-tensile capacity, the minimum maintenance requirement, and the longest service life.



.

Specification:


Material Stainless steel
Grade 304
 Dimension 3 * 3 m, request
Slot Size 0.7 mm
Width  up tp 3000mm
Length  up to 3150mm
Type  screen plate
Wire size 2*3.5 mm
Support rod 3*4.6 mm
Wire shape V shape



Regular Specifications:



Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Dimension: width up to 3000 mm

                    Length up to 3150mm

Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.

Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.

Special specification can be made according to your need.



Advantages:



It’s gap precision, demedium performance is good and durable, the minimum slot can be reach 0.15 mm, The wire geometric shapes is good , the scrape edge is sharp, cutting ability is strong, can not only ensure the highest efficiency, but also to the maximum avoid screen hole plug.

We can also frame the arc-shape screen with polyurethane to strengthen its structure and make it have longer service time



Industry:



It can be used for filtering and screening of many kinds of media, and it is widely used in multi-industry screening, filtration, dehydration, desilting and so on.

* mining machinery: used for desilting and dewatering of coal preparation plants.

* wheat tooth machine: it is suitable for use in wheat tooth mill, floater and drying stove.

* beer machine: it is suitable for use in the brewery filter tank, with the advantages of high opening rate and long service life.

* huanbao: used for filling oil, gas and Wells with sand and gravel to protect underground and ground equipment.It has the advantages of high opening rate, large filtration area, fast filtration speed and long service life.

* food industry: the filtration process can be used for food and beverage.

* aquaculture: used for farming, cleaning up waste residues from animals.

* chemical industry and other: sewage treatment for sugar mills and paper mills;Material filtration, dehydration and the supporting use of all kinds of painting rooms in chemical fertilizer plant;Starch filtration in the food factory;Ventilation for grain storage.

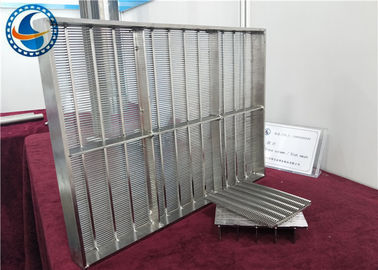

Pictures:



Heat Resistant Wedge Wire Screen Panels For Aquaculture / Food Industry 0



Package:



Heat Resistant Wedge Wire Screen Panels For Aquaculture / Food Industry 1
