Anti Aging Wedge Wire Screen Panels , Stainless Steel 304 Johnson Screen Mesh

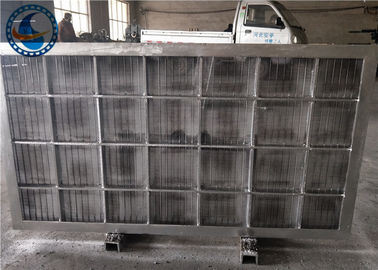

Large Image : Anti Aging Wedge Wire Screen Panels , Stainless Steel 304 Johnson Screen Mesh

Product Details:

Place of Origin:	Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO9000
Model Number:	HY004

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	Moister-Barrier with each piece,64pcs per 20 ft container
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Grade:	304
Slot Size:	0.7mm	Diameter:	300 Mm + 450 Mm
Length:	500 Mm	End Connection:	Weld
Package:	Woden Box,Container
Highlight:	wedge wire sheets , wedge wire panels

Anti Aging Wedge Wire Screen Panels, Stainless Steel 304 Johnson Screen Mesh

Product Attributes

Attribute	Value
Material	Stainless steel
Grade	304
Slot size	0.7mm
Diameter	300 mm + 450 mm
Length	500 mm
End connection	Weld
Package	Woden box, Container

Product Description

Wire Welded Johnson Screen Mesh Stainless Steel 304 For Coal Washing Equipment

John Stainless steel Wire Wrap Screen Plate V Wire Slot Screen For Sieving Industry is welded by V wire and support rod. There is a fixed value slot between each V wire. The support bar can be a round wire or a triangular wire or a trapezoidal wire.

Specifications

Material	Stainless steel
Grade	304
Dimension	3 * 3 m, request
Slot Size	0.5 mm
Width	up to 3000mm
Length	up to 4430mm
Type	screen plate
Wire size	2*3.5 mm
Support rod	3*4.6 mm
Wire shape	V shape

Regular Specifications

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Dimension: width up to 3000 mm, length up to 4430mm

SIZES OF THE WIRE AND ROD
WIRE SHAPE	V	V	V	V	V
Width(mm)	1.0	1.2	1.5	2.0	2.2
Height(mm)	2.0	2.0	2.0	3.5	4.5
ROD SHAPE	V	V	V	V	O
Width(mm)	2.0	2.2	3.0	3.0	Diameter
Height(mm)	3.0	4.5	4.6	5.0	3.0~3.8

Industry Applications

Stainless steel Wire Wrap Screen Plate V Wire Slot Screen For Sieving Industry can be used for filtering and screening of many kinds of media, and it is widely used in multi-industry screening, filtration, dehydration, desilting and so on.

Mining machinery: used for desilting and dewatering of coal preparation plants.
Wheat tooth machine: it is suitable for use in wheat tooth mill, floater and drying stove.
Beer machine: it is suitable for use in the brewery filter tank, with the advantages of high opening rate and long service life.
Environmental protection: used for filling oil, gas and wells with sand and gravel to protect underground and ground equipment. It has the advantages of high opening rate, large filtration area, fast filtration speed and long service life.
Food industry: the filtration process can be used for food and beverage.
Aquaculture: used for farming, cleaning up waste residues from animals.
Chemical industry and others: sewage treatment for sugar mills and paper mills; Material filtration, dehydration and the supporting use of all kinds of painting rooms in chemical fertilizer plant; Starch filtration in the food factory; Ventilation for grain storage.
