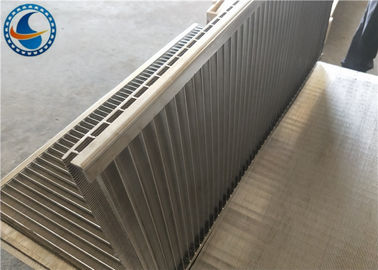

Anti Rust Wedge Wire Screen Panels , Professional V Wire Wrapped Screen Plate

Anti Rust Wedge Wire Screen Panels , Professional V Wire Wrapped Screen Plate
Anti Rust Wedge Wire Screen Panels , Professional V Wire Wrapped Screen Plate Anti Rust Wedge Wire Screen Panels , Professional V Wire Wrapped Screen Plate

Large Image :  Anti Rust Wedge Wire Screen Panels , Professional V Wire Wrapped Screen Plate

Product Details:
Place of Origin: Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: HY004
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Moister-Barrier with each piece,64pcs per 20 ft container
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Material: Stainless Steel Grade: 304
Slot Size: 0.7mm Diameter: 300 Mm + 450 Mm
Length: 500 Mm End Connection: Weld
Package: Woden Box,Container
High Light:

wedge wire panels

,

stainless steel wedge wire grates

Stainless Steel 304 Johnson V Wire Wrapped Wound Screen Plate





Johnson V Wire Wrapped Wound Screen Plate Advantages:



Stainless Steel 304 Wire Welded Continuous Solt Johnson Wedge Wire Flat Screen have many advantages as below:

V-Shaped Slots: Openings shaped like a "v" that open toward the inside of the well tend to allow the particles that are just barely smaller than the width of the slot pass. In other shapes of openings, these particles would get caught in the screen and clog it.
Very Large Open Area: This design gives continuous slot and hence the% open area for water to enter is more than 2 times that of conventional slotted pipes of any size and slot opening. This allows more water to enter at much lesser frictional head loss and the efficiency of tube well is improved appreciably.
Energy Saving: Due to reduce frictional head losses and increased discharge, the pump load reduces the power required to pump same quantity of water. Power saving of around 20-25% is observed.





Johnson V Wire Wrapped Wound Screen Plate Product Description:



Stainless Steel 304 Johnson V Wire Wrapped Wound Screen Plate is welded by V wire and support rod.There is a fixed value slot between each v wire. The support bar can be a round wire or a triangular wire or a trapezoidal wire.

The maximum size of the screen can be 3000*4430mm. The frame or support plate can be added to the bottom or the surrounding of the screen according to the customer's needs. It can also make a certain arc according to customer requirements to meet the needs of use.
The surface of the screen is evenly spaced, the solder joint is firm and the permeability is good.



Johnson V Wire Wrapped Wound Screen Plate Specification:



Material Stainless steel
Grade 304
 Dimension 3 * 3 m, request
Slot Size 0.7 mm
Width  up tp 3000mm
Length  up to 3150mm
Type  screen plate
Wire size 2*3.5 mm
Support rod 3*4.6 mm
Wire shape V shape



Johnson V Wire Wrapped Wound Screen Plate  Regular Specifications:



Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Dimension: width up to 3000 mm

                    Length up to 3150mm

Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.

Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.

Special specification can be made according to your need.



Johnson V Wire Wrapped Wound Screen Plate Industry:

  1.  mining machinery: used for desilting and dewatering of coal preparation plants.
  2.  wheat tooth machine: it is suitable for use in wheat tooth mill, floater and drying stove.
  3.  beer machine: it is suitable for use in the brewery filter tank, with the advantages of high opening rate and long service life.
  4.  food industry: the filtration process can be used for food and beverage.
  5.  aquaculture: used for farming, cleaning up waste residues from animals.
  6.  chemical industry and other: sewage treatment for sugar mills and paper mills; Material filtration, dehydration and the supporting use of all kinds of painting rooms in chemical fertilizer plant; Starch filtration in the food factory; Ventilation for grain storage.
