Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Grade: | 304 |
|---|---|---|---|
| Slot Size: | 0.5mm | Length: | 1219 Mm |
| Width: | 486 | ||
| High Light: | wedge wire sheets,stainless steel wedge wire grates |
||
Low Carbon Steel Woun Johnson Slot Screen Sieve Plate Use In Coal Washer
Johnson Slot Screen Specification:
| Material | Stainless steel |
| Grade | 304 |
| Dimension | 1219mm*486mm, request |
| Slot Size | 0.5 mm,request |
| Width | 486mm, up tp 3000mm |
| Length | 1219mm, up to 4430mm |
| Type | screen plate |
| Wire size | 2.5*4.8 mm |
| Support rod | 1.8*25 mm |
| Wire shape | V shape |

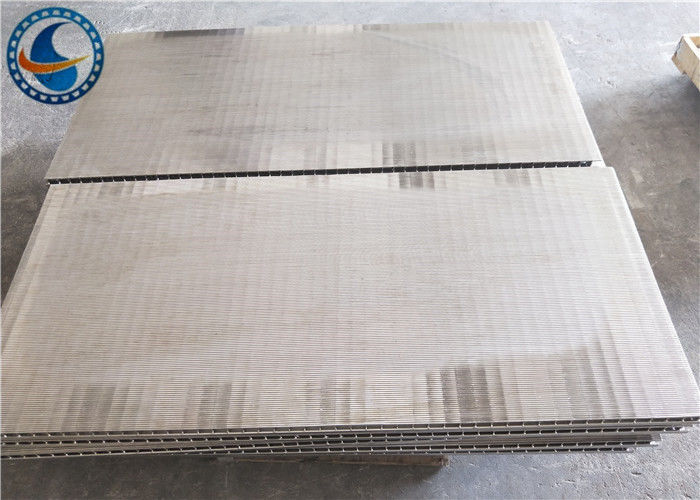

Johnson Slot Screen Product Description:
Low Carbon Steel Woun Johnson Slot Screen Sieve Plate is welded by V wire and support rod.There is a fixed value slot between each v wire. The support bar can be a round wire or a triangular wire or a trapezoidal wire.
The maximum size of the screen can be 3000*4430mm. The frame or support plate can be added to the bottom or the surrounding of the screen according to the customer's needs. It can also make a certain arc according to customer requirements to meet the needs of use.
The surface of the screen is evenly spaced, the solder joint is firm and the permeability is good.
Johnson Slot Screen Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Dimension: width up to 3000 mm
Length up to 4430mm
| SIZES OF THE WIRE AND ROD | ||||||
| WIRE SHAPE | V | V | V | V | V | V |
| Width(mm) | 1.0 | 1.2 | 1.5 | 2.0 | 2.2 | 3.0 |
| Height(mm) | 2.0 | 2.0 | 2.0 | 3.5 | 4.5 | 4.6 |
| ROD SHAPE | V | V | V | V | V | O |
| Width(mm) | 2.0 | 2.2 | 3.0 | 3.0 | 3.2 | Diameter |
| Height(mm) | 3.0 | 4.5 | 4.6 | 5.0 | 6.0 | 3.0~3.8 |
Johnson Slot Screen Advantages:
Uniform gap: The gap between each screen is fixed. The CNC machine can make the gap accurately.
The solder joint is firm: the V-shaped wire tip is welded to the tip, which makes the solder joint more firm and difficult to remove.
Not easy to block: V-shaped wire has a unique shape, so that each slit is small on one side and small on the side of the small gap. It is not easy to block and can be backwashed.
Johnson Slot Screen Industry:
High Precision Wedge Wire Screen Panels Johnson Wound Screen Plate Use For Coal Washer can be used for filtering and screening of many kinds of media, and it is widely used in multi-industry screening, filtration, dehydration, desilting and so on.
