|Features:||Non-clogging||Name:||Wedge Wire Mesh|
|Material:||Stainless Steel 304, 316L||Length:||Customize Length, Upto 4000mm|
|Diameter:||29-1200mm||Technique:||Full Welded, Wrapped Wire|
johnson wedge wire screens,
johnson filter screen

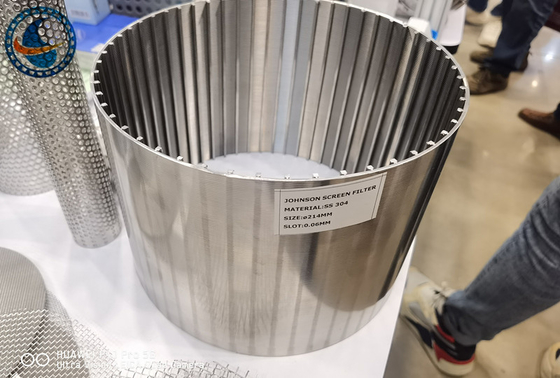

Downhole Slotted Tube Stainless Steel 304 Wedge Wire Mesh Used In Water Supply Systems
Downhole Slotted Tube Introduction:
Downhole Slotted Tube also be named Vee-wire screen pipe, Continuous slot Vee-wire screen tube ,Wire wrapped screen ,Wire wound screen ,water filter .It is made up of Vee-shaped wrapped wire and Vee shaped support rod in each intersection welded together .Accurate slot and high filtration precision .
The hole shape make the wedge wire mesh and machine structure more fusion.Professional welding technique make high performance and neat & perfection seal up.
Downhole Slotted Tube Parameter selection table:
|Downhole Slotted Tube|
|Specification (Profile wire):||Width(mm): 1.0 1.2 1.5 2.0 2.2 3.0 3.2
Height(mm): 2.0 2.5 3.5 4.6 5.0 6.0
|Specification (support rods):||Width(mm): 2.0 3.0
Height(mm): 3.0 4.6 5.0 6.0 7.0
Round: From 2.50mm to 6.0mm
|Note: other wires and rods available upon request|
|Slot size||0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request.|
|Material:||Stainless steel 304, 304L, 316L ,321 etc.)|
|Length||Upto 4 meters|
|Screen end||Plain beveled ends, male/female threaded, flange, close up.|
|Other sizes available on request.|
Reduce energy consumption and increase water flow.
Reduce erosion of entry surfaces and increase well life.
Allow a uniform and efficient well development.
Reduce significantly potential pump damage and subsequent maintenance costs.
Downhole Slotted Tube Material :
Stainless steel wire, low carbon steel wire, galvanized wire, The screen tube is composed of screen bar and support bar.
The screen bar is generally triangular wire, and the supporting bar can be round wire, triangular wire, flat wire, wedge-shaped wire, etc.
The specifications of common screen bar and support bar are as follows:
Downhole Slotted Tube bar:
1.5 * 2.0mm, 1.5 * 2.5mm, 2.0 * 3.5mm, 3.0 * 4.5mm, 3.0 * 5.5mm, 3.5 * 5.0mm,Etc
Downhole Slotted Tube Advantages:
High abreaction resistance
Large open area
Better sand filtration
Lowest possible cost
Long using life
Maximum flow capacity
water well screen pipe also be named:
v wire water well screens , wire wrapped screens pipe , Johnson Screen , welded wedge wire screen , reversed slot screen , continuous slot pre-pack , water filter , screen cylinders , stainless steel slot tube , reverse rolled screen , strainer pipe , continuous slot wire wrap well screens , pipe base well screen , ribbed-type wire wrapped screen , stainless steel or low carbon galvanized or mild steel wire screen , wire wrapped liner , woven wedge wire screen , slot wire screen tube , well screen , strainer screens , well point screens , oil screen tube , etc
