Rust Proof Sand Control Screens For Coal / Mine Processing Industry

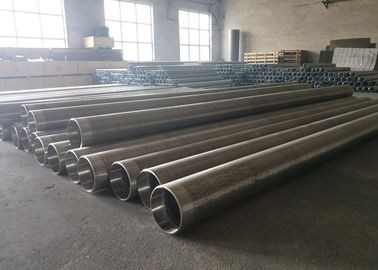

Large Image : Rust Proof Sand Control Screens For Coal / Mine Processing Industry

Product Details:

Place of Origin:	Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO9000
Model Number:	HY004

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	Moister-Barrier with each piece,110 pcs per 20 ft container
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Grade:	304
Slot Size:	0.5 Mm	Diameter:	8 "
Length:	5800mm	End Connection:	Welded Rings
Package:	Woden Box,Container
Highlight:	water well sand screen , slotted screen pipe

Rust Proof Sand Control Screens For Coal / Mine Processing Industry

Product Attributes

Material	Stainless steel
Grade	304
Slot size	0.5 mm
Diameter	8"
Length	5800mm
End connection	Welded rings
Package	Wooden box, Container

Product Description

High Precision Sand Control Screens, Wedge Wire Mesh For Coal / Mine

Sand Control Screens Product Description:

Sand Control Screens is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights. There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open area to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.

Sand Control Screens Specification:

Material	Stainless steel
Grade	304
O.D	219 mm
Size	8"
Slot size	0.5 mm
Length	5.8 m
End connection	Welded rings
Wire size	118 #
Support rod	140 #
Wire shape	V shape

Regular Specifications

SIZE (INCH)	O.D (MM)	SLOT (MM)	LENGTH (M)	COLLAPSE STRENGTH (BAR)	TENSILE WEIGHT (TON)	WRAP WIRE(WIDTH*HEIGHT) (MM)	RODS (MM)
3-1/2	88.9	1.0	3	＞22	10.2	2.3*3.5	3.8MM/22
4-1/2	114.3	1.0	3	＞28	11.5	2.3*3.5	3.8MM/22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	0.63	5.8	＞83	45	3.2*6.0	6.0MM*32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3*3.5	3.8MM/48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0*5.0	4.0MM/48
8-5/8	219.1	1.0	5.8	＞60	46	3.2*6.0	5.0MM/48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5	4.9MM/55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0*5.0	4.9MM/55
10-3/4	273.1	1.0	5.8	＞100	48	3.2*6.0	5.0MM/55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0*5.0	4.0MM/50
14	355.6	1.0	3	＞80	37.8	3.0*5.0	4.0MM/59

Characteristics

Not easy to jam: The special V shaped wire makes the hole of screen outside face smaller than inside, so the hole is not easy to jam.
Slot even: The CNC machine tools strictly control the gap between the wire, so that the gap is even.
Strong corrosion resistance: Stainless steel 304 has high corrosion resistance.

OEM Service

Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.

Custom Range

Filter pipe material: Mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material.
Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.
Diameter: 2" 3" 4" 5" 6" 8" 10" 12" 14" 16" 20". 29 mm - 1000 mm.
Length: 2.9 M, 5.85 M. Up to 6 M.
Connection form: Groove connection/weld ring connection or thread connection.

Application

Heavy oil, sand oil, light oil, SAGD, CBM, bitumen, thermal
Water injection, bi-modal sand, carbonates, thin pay
Horizontal, vertical, deviated oil and gas and water wells
