Payment & Shipping Terms:
|Slot Size:||0.7mm||Diameter:||300 Mm + 450 Mm|
|Length:||500 Mm||End Connection:||Weld|
wedge wire sheets,
wedge wire panels
Stainless Steel 304 Johnson V Wire Bend Arc Screen 20 Slot Filter Treatment

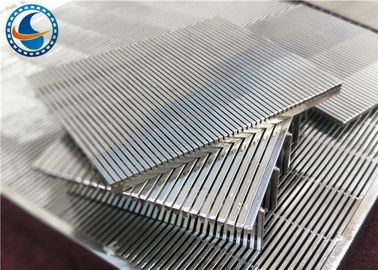

Arc wedge wire screen panel is welded by V wire and support rod.There is a fixed value slot between each v wire, The wire is V shape and the support rod can be V shape ,square shape and round shape. The arc screne panel have a certain bending degree to suit to the special usage .Our factory can offer various kinds of stainless steel welded wedge wire Arc-shape screen mesh .customers can choose different size and opening arc-shape sieving plate and sieving slice,according to the needs of themselves,in order to meet its actual need.
|Dimension||3 * 3 m, request|
|Slot Size||0.7 mm|
|Width||up tp 3000mm|
|Length||up to 3150mm|
|Wire size||2*3.5 mm|
|Support rod||3*4.6 mm|
|Wire shape||V shape|
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Dimension: width up to 3000 mm
Length up to 3150mm
Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.
Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.
Special specification can be made according to your need.
It’s gap precision, demedium performance is good and durable, the minimum slot can be reach 0.15 mm, The wire geometric shapes is good , the scrape edge is sharp, cutting ability is strong, can not only ensure the highest efficiency, but also to the maximum avoid screen hole plug.
We can also frame the arc-shape screen with polyurethane to strengthen its structure and make it have longer service time
It can be used for filtering and screening of many kinds of media, and it is widely used in multi-industry screening, filtration, dehydration, desilting and so on.
* Mining machinery
* Wheat tooth machine
* Beer machine
* Environmental protection
* Food industry
* Chemical industry and other
