Low Flow Resistance Seamless Casing Pipe For Oil / Gas / Water Well Sand Control

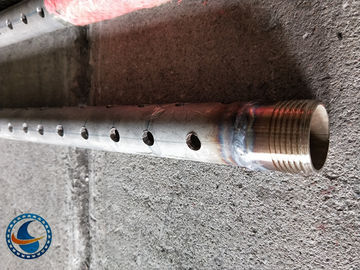

Large Image : Low Flow Resistance Seamless Casing Pipe For Oil / Gas / Water Well Sand Control

Product Details:

Place of Origin:	Anping, Hebei,China
Brand Name:	Hengyuan
Certification:	ISO, CIQ, SGS, CE
Model Number:	OD: 114mm

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Packaging Details:	Wooden boxes or container
Delivery Time:	7 -10 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 meters per day

Contact Now

Detailed Product Description

Wedge Wire Screen Material:

Stainless Steel 304

Base Pipe Material:

Slot Of Wedge Wire Screen:

0.1-50mm

End Connection:

Male/female Threaded

Highlight:

johnson screen mesh

johnson well screen

Low Flow Resistance Seamless Casing Pipe For Oil / Gas / Water Well Sand Control

Product Specifications

Attribute	Value
Wedge Wire Screen Material	Stainless Steel 304
Base Pipe Material	N80
Slot of Wedge wire screen	0.1-50mm
End connection	Male/female threaded

Product Description

Deep Well Pipe Base Screen High Flow Capacity Outer Diameter 114mm

Outer Diameter 114 mm Stainless Steel Deep Well Pipe Base Screen

Pipe Base Screen Information

Hengyuan screen pipe contain single-deck well screen, double-deck well screen, pipe base well screen etc.
End connection: welded rings, threaded couplings
The length upto 6000mm
Used in oil well, gas well, water well sand control, slurry filter

Pipe Base Screen Construction

Hengyuan pipe base screens are manufactured with strict quality standards to be at par with international standards. The screen jackets are manufactured by spirally wounding narrow faced Vee-Wire around a cage of longitudinal support rods. Each intersection point of these wires is fusion welded. These jackets are then mounted over seamless pipe (API Casing, tubing) which is perforated as per international standards to ensure flow performance, and then both ends of jacket are welded on to the seamless pipe.

Key Features

High flow capacity: The jacket is made of vee wire well screen this allow more water or oil to enter at much lesser frictional head loss and the efficiency of well is improved appreciably.
Perfect integral strength and strong anti-deformation ability: The internal part of filtration jacket is supported by base pipe and the outer protective shroud can be fixed outside the filtration jacket if necessary. The integral strength of base pipe with drilled holes is merely 2~3% less than standard casing or tubing.
More choice: The screen jacket material can be stainless steel or low carbon steel, it is can as per your requirement.
Slot with high density, low flow resistance: Slot density are 3~5 times as traditional slotted screen, with low flow resistance. It is conducive to increase production of oil or gas.
Good manufacturability: Makes high efficiency, low cost, and large-scale production achievable.
