8" Spiral Steel Pipe Carbon Steel Welded Pipe For Gas Transport

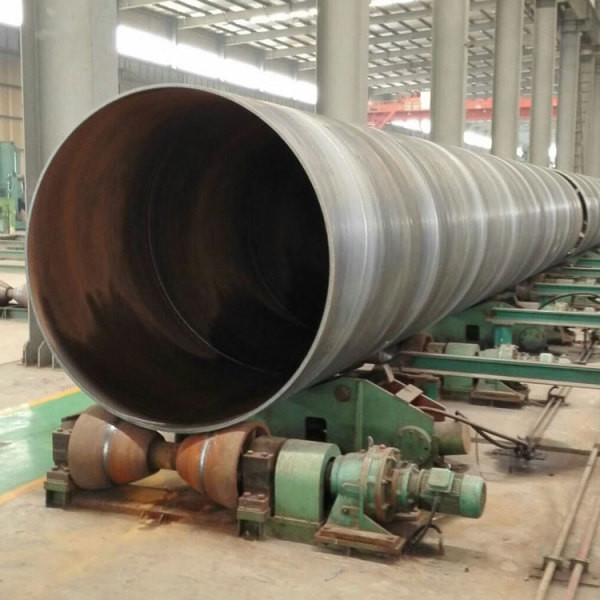

Large Image : 8" Spiral Steel Pipe Carbon Steel Welded Pipe For Gas Transport

Product Details:

Place of Origin:	HENGSHUI
Brand Name:	Hengyuan
Certification:	ISO, CIQ, CQ
Model Number:	112714

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	USD 700/ ton
Packaging Details:	Container
Delivery Time:	5 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100000 tons per day

Contact Now

Detailed Product Description

Name:	Spiral Steel Welded Pipe	Material:	Q235B
OD:	529mm	Length:	12m
Thickness:	5mm	Use:	For Water Transport
Highlight:	8" spiral steel pipe , gas transport spiral steel pipe , 8" carbon steel welded pipe

8" Spiral Steel Pipe Carbon Steel Welded Pipe For Gas Transport

Product Specifications

Attribute	Value
Name	Spiral Steel Welded Pipe
Material	Q235B
OD	529mm
Length	12m
Thickness	5mm
Use	For water transport

Product Description

8" Spiral Steel Pipe Carbon Steel Welded Pipe For Gas Transport

Main Applications

Piling pipe
Construction
Water, Oil, Gas transportation
Hydropower station pipe (Hydraulic Pipe)
HENGYUAN SSAW spiral welded steel pipes, which with large diameter and strong supply ability are widely used in construction and fluid transportation

Our Services

Free sampling
Large diameter
API 5L, ISO certified
100% after-sales quality assurance
All other specifications of SSAW spiral welded steel pipes are available according to your requirement (OEM&ODM)! Factory price you will get from HENGYUAN Group

HENGYUAN has 20 years manufacturer experience, providing high quality products which have been exported over 30 countries. Pipes can be customized according to customer's requirement on outside diameter and wall thickness with Galvanized coated or black painted(3PE, FBE, 3PP) surface treatment.

Technical Specifications

Parameter	Specification
Outer Diameter	406-1524mm
Wall Thickness	8-30mm
Length	3-17M according to client requirement
Standard	API 5L, EN10255, EN10219, EN10210, EN39, BS1387, ASTM A53, ASTM A500, ASTM A36, ISO 65, JIS G3444, DIN 3444, ANSI C80.1, AS 1074, GB/T 3091
Material	Gr.A, Gr.B, Gr.C, S235, S275, S355, A36, SS400, Q195, Q235, Q345
Certificate	API 5L, ISO 9001:2008, SGS, BV, CCIC etc
Finish of pipe	Hot dipped galvanized with zinc 220~260g/m²; Painted with black/varnish lacquer; Oil on the surface to prevent rust; Bare pipe without painting: Epoxy painting/FBE coating/3PE coating
Pipe End	Plain end/Bevel end; Threaded on two ends, one end with coupling, one end with plastic cap
Marking	As per client requirement or mill standard
Packing	OD not less than 273mm: Loose packing, piece by piece. OD less than 273mm: In hexagonal seaworthy bundles packed by steel strips. Small sizes nested into big sizes.
Applications	Construction/building materials steel pipe, Scaffolding pipe, Fence post steel pipe, Fire protection steel pipe, Greenhouse steel pipe, Low pressure liquid, water, gas, oil, line pipe, Irrigation pipe, Handrail pipe
Technical	LSAW (Longitudinally Submerged Arc welding)
Trade Term	FOB, CFR, CIF, EXW, FCA
Payment Term	T/T, LC
Delivery Time	15-45 days (based on quantity) after receiving advanced payment by T/T or LC
Main Market	Southeast Asia, South Asia, Middle East, Europe, Middle & South America, Africa and Oceania
