Product Details:
Payment & Shipping Terms:
|
| Name: | Continuous Slot Screen Nozzle | Material: | Stainless Steel 316L |
|---|---|---|---|
| Slot Size: | 0.28 Mm | Open Area: | 15.7% |
| Diameter: | 57 Mm | Length: | 120mm |
| Thread: | 1" BSPT Female Threaded | Wrap Wire: | 1.5*2mm VEE Wire |
| Support Rod: | 2*3mm VEE Wire | Weight: | 0.35KG/piece |
| High Light: | SS316L Continuous Slot Screen Nozzle,1" Continuous Slot Screen Nozzle,BSPT Continuous Slot Screen Nozzle |
||
1" BSPT Female Threaded SS316L Continuous Slot Screen Nozzle For Resin Filter
Continuous Slot Screen Nozzle also be named Water Filter Nozzle.
Continuous Slot Screen Nozzle For Resin Filter Description:
| Product Name | Continuous Slot Screen Nozzle For Resin Filter |
| Material | Stainless Steel |
| Grade | 316L |
| Slot size | 0.28mm |
| Diameter | 57 mm |
| Screen Lenth | 120 mm |
| Total Length | 147 mm |
| Thread Size | 1" BSPT female threaded |
| Nutsert | Nothing |
| Gasket | Nothing |
Continuous Slot Screen Nozzle For Resin Filter Characteristic:
Stainless Steel 316L O.D 57MM Continuous Slot Screen Nozzle Used In Resin Filter is welded with Johnson well screen, thread pipe and steel panel through special welding process.
The Johnson continuous slot screen is the profile wedge wire screen ,the wire and the support rod is V shape , so the screen filter surface outside is smaller than inside, so that the screen nozzle is not easy to jam.
The thread pipe is made by international standard.1 “,1 1/4 “, 2 1/4 “ and so on.
Continuous Slot Screen Nozzle For Resin Filter Advantages:
Stainless Steel 316L Johnson Screen Filter Nozzle Used In Resin Filter have many advantages as below:
1. Strong and durable, with long service life.
2. The gap is even, no leakage of resin, no running material.
3. High opening rate can meet the requirement of large flow.
4. The structure is varied and meet different design requirements.
Continuous Slot Screen Nozzle For Resin Filter Use:
Stainless Steel 316L Johnson Continuous Slot Screen Filter Nozzle Used In Water Distributor is American technology.water treatment, chemical, petrochemical, pharmaceutical, biotechnology, power plant, ion exchange, yin-yang bed, mixed bed.
Continuous Slot Screen Nozzle For Resin Filter Regular Specifications:
| Type | Slot size | Specifications | Flow filter area 0.2mm slot ( reference) |
|||
| D | H | L | M | |||
| HY-PT-45-A | 0.2-0.5 | 45 | 25 | 90 | 25 | 280 |
| HY-PT-45-B | 0.2-0.5 | 45 | 35 | 100 | 25 | 380 |
| HY-PT-45-C | 0.2-0.5 | 45 | 45 | 110 | 25 | 550 |
| HY-PT-45-D | 0.2-0.5 | 45 | 35 | 55 | 25 | 380 |
| HY-PT-45-E | 0.2-0.5 | 45 | 45 | 65 | 25 | 550 |
| HY-PT-53-A | 0.2-0.5 | 53 | 35 | 100 | 25 | 450 |
| HY-PT-53-B | 0.2-0.5 | 53 | 45 | 110 | 25 | 580 |
| HY-PT-53-C | 0.2-0.5 | 53 | 55 | 120 | 32 | 700 |
| HY-PT-57-A | 0.2-0.5 | 57 | 35 | 100 | 32 | 530 |
| HY-PT-57-B | 0.2-0.5 | 57 | 45 | 110 | 32 | 680 |
| HY-PT-57-C | 0.2-0.5 | 57 | 55 | 120 | 32 | 830 |
| HY-PT-70-A | 0.2-0.5 | 70 | 40 | 105 | 32 | 650 |
| HY-PT-70-B | 0.2-0.5 | 70 | 55 | 115 | 32 | 810 |
We can also make any other size according to your drawing.
Pls feel free to cotact me if you have any requirement.

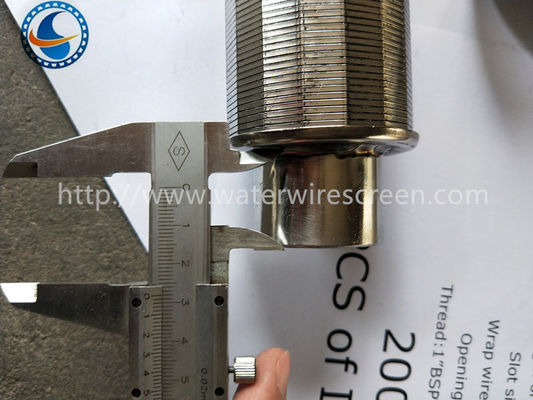

Continuous Slot Screen Nozzle For Resin Filter Pictures:
