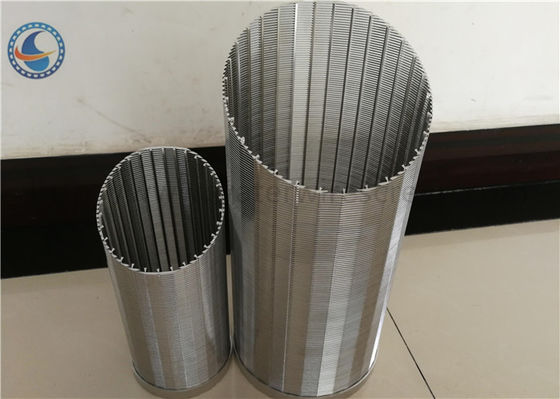

6" 304 Stainless Steel Johnson Wire Wrapped Screen Pipe

6" 304 Stainless Steel Johnson Wire Wrapped Screen Pipe
6" 304 Stainless Steel Johnson Wire Wrapped Screen Pipe 6" 304 Stainless Steel Johnson Wire Wrapped Screen Pipe

Large Image :  6" 304 Stainless Steel Johnson Wire Wrapped Screen Pipe

Product Details:
Place of Origin: Anping, Hebei, China
Brand Name: HengYuan
Certification: ISO, SGS, CE, CIQ
Model Number: HY-11
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiated price
Packaging Details: wooden boxes,container
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1500 pcs /month
Detailed Product Description
Features: Non-clogging Name: 2507 Stainless Steel Johnson Wedge Wire Screens For Filteration
Material: Low Carbon Galvanized ,stainless Steel Length: Upto 6000mm
Diameter: 29-1200mm Technique: Full Welded
Application: Filteration Package: Wooden Boxes,container
Slot Type: Slot Wire Type: V Wire
Support Wire: V Wire Usage: Liquid Filter
High Light:

Johnson Wire Wrapped Screen

,

SS304 Wire Wrapped Screen

,

6" johnson vee wire screen

6" 304 Stainless Steel Johnson Screen pipe





Wedge Wire   Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod   Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot Size   0.015, 0.020, ...0.10, 0.15, 0.20, 0.25, 0.30...6.00mm also achieved upon request.
Material   galvanized low carton (LCG), stainless steel (304,316 etc.)
Length   up to 6 meters.
Diameter   from 20mm to 1200mm.
End Connection   Plain beveled ends, flanged or threaded couplings




Features of Johnson wire wrap screen

• They are non-clogging


• Self-supported and rigid


• Very long lifetime


• Reliable and consistent filtration rating


• All metallic construction (non-metallic also possible like PP)


• Easy to clean smooth filtering surface




Specification (wedge wire): Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod): Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size 0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also achieved upon request.
Material: galvanized low carton (LCG), stainless steel (304,316 etc.)
Length up to 6 meters.
Diameter from 25mm to 1200mm.
End connection Plain beveled ends, flanged or threaded couplings



6" 304 Stainless Steel Johnson Wire Wrapped Screen Pipe 06" 304 Stainless Steel Johnson Wire Wrapped Screen Pipe 16" 304 Stainless Steel Johnson Wire Wrapped Screen Pipe 26" 304 Stainless Steel Johnson Wire Wrapped Screen Pipe 3
