Stainless Steel OD89mm Continuous Slot Screen For Filtration

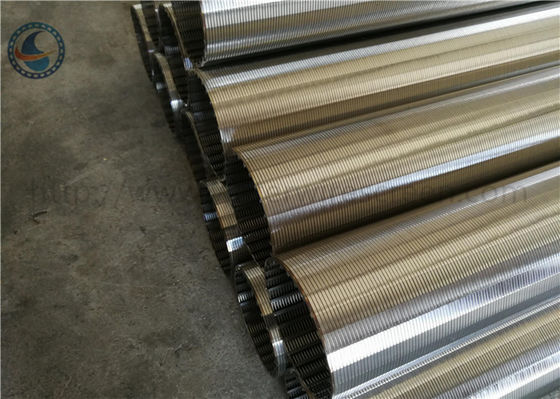

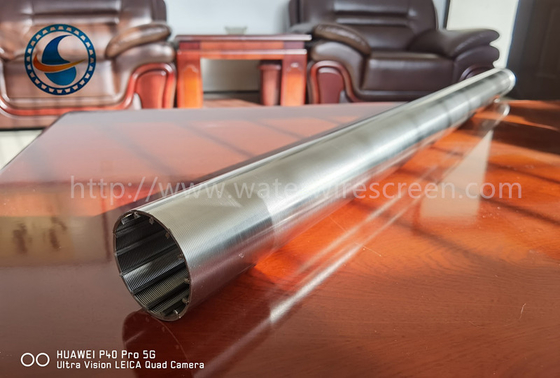

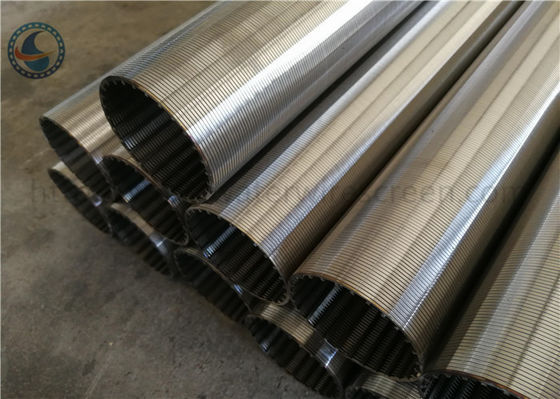

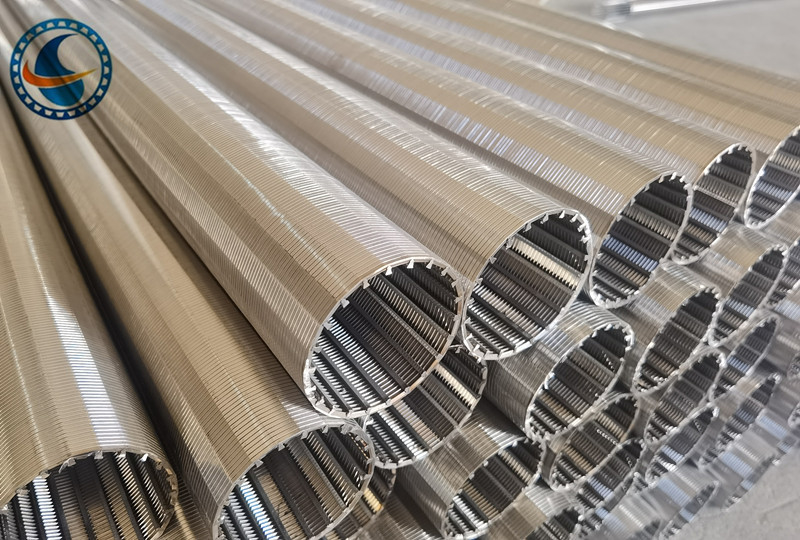

Large Image : Stainless Steel OD89mm Continuous Slot Screen For Filtration

Product Details:

Place of Origin:	Anping, Hebei, China
Brand Name:	HengYuan
Certification:	ISO, SGS, CE, CIQ
Model Number:	HY-11

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiated price
Packaging Details:	wooden boxes,container
Delivery Time:	7 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1500 pcs /month

Contact Now

Detailed Product Description

Features:	Non-clogging	Name:	2507 Stainless Steel Johnson Wedge Wire Screens For Filteration
Material:	Low Carbon Galvanized ,stainless Steel	Length:	Upto 6000mm
Diameter:	29-1200mm	Technique:	Full Welded
Application:	Filteration	Package:	Wooden Boxes,container
Slot Type:	Slot	Wire Type:	V Wire
Support Wire:	V Wire	Usage:	Liquid Filter
Highlight:	89mm continuous slot screen , galvanized continuous slot screen , galvanised continuous slot screen

Stainless Steel OD89mm Continuous Slot Screen For Filtration

Product Specifications

Attribute	Value
Name	2507 Stainless Steel Johnson Wedge Wire Screens For Filtration
Material	Low carbon galvanized, stainless steel
Length	Up to 6000mm
Diameter	29-1200mm
Technique	Full welded
Features	Non-clogging
Application	Filtration
Package	Wooden boxes, container
Slot type	Slot
Wire type	V wire
Support wire	V wire
Usage	Liquid filter

Product Description

2507 Johnson type 89mm Continuous slot screen are welded by profile V-wire and support wires, also called Johnson screen. The features include high ratio filter area due to big opening, vee wire structure that facilitates automatic backwashing and prevents pipe blocking.

The pressure reduces when water flows in for greater filter area, preventing sand grains from entering the wedge wire tube under high pressure conditions, thus extending pipe life. Between the same length, diameter and slot size, wedge wire pipe offers three times the capacity of bridge filter pipes.

Material: Low carbon steel wire, AISI 304, AISI 304L, AISI 316, AISI316L, high quality stainless steel wire.

Application: With high-precision, our wedge wire as filter elements are used in water treatment industry, oil filtration, paper making, refine sugar. We have inside perforated metal and reverse wedge wire tube outside filter.

Technical Details

Name	Wedge wire screen pipe for filter
O.D	89 mm
Length	2 m
Slot size	1.5 mm
End connection	Male/female thread coupling
Wire shape	V shape, V wire
Wire size	23mm (widthheight)
Support wire	V shape, V wire
Other name	Johnson filter, Johnson screen pipe, v wire wrapped screen
Customization	We support customization

Applications

Well sand control filter
Widely used in various kinds of medium filtering
As the fitting using in the water-treating equipment (environment protection; seawater transforms into industrial water and life use water desalination treatment; running water treatment; softening treatment)
The petroleum industry: petroleum product terminal filters and chemical acid; alkali liquid filters, ethyl alcohol
The organic solution recycling filter

Key Advantages

Screens with high open area are more suitable for the construction of high-quality water wells and gas wells
Low cost operation
Reduce the abrasion of the pump
Extend the life span of wells, low-carbon, Galvanized or stainless steel construction
