Product Details:
Payment & Shipping Terms:
|
| Name: | Inlet And Outlet Wire Wrapped Screen Baskets | Material: | AISI 304 |
|---|---|---|---|
| O.D: | 208mm | I.D: | 200mm |
| Length: | 400mm | Slot: | 100um |
| Wire Size: | 1.5*2mm VEE Wire | Support Rod: | 2*3mm VEE Wire |
| Distance Of Rods: | 20mm | Filter Type: | From Inside To Outside |
| High Light: | Wire Wrapped Screen Baskets,100um Slot Wire Wrapped Screen,AISI 304 wire wrap screens |
||

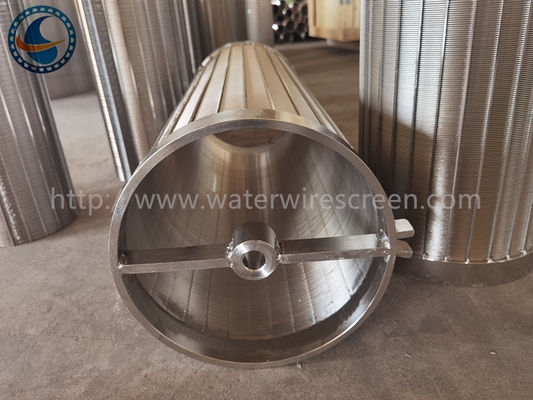

AISI 304 100um Slot Inlet and Outlet Wire Wrapped Screen Baskets
Hengyuan Inlet and Outlet Baskets are designed to meet open area, designated temperature, and differential pressure specifications. Combination inlet basket or distributor laterals and outlet basket or collector laterals systems can be designed and manufactured to meet customer performance requirements or specifications.
Backwash (reverse flow) systems can also be designed to automatically clean the screen products.
| Certification: | custom-made | Brand: | HengYuan company |
| Properties: | long service life | Use: | screening |
| Type: | wire wound filter | Material: | Metal wire mesh |
| Scope of application: | filter applicable | Object | liquid |
| Working temperature: | 10-800 C | Maximum working pressure difference: | 10-100MPa |
| Filtering accuracy: | 0.02-200mm | Wrap Wire | 1*2mm,1.2*2mm,1.5*2mm |
| Raw water pressure: | 0.2-10KG/c | Support rod: | 2*3mm |
| Model: | a variety of | Specifications: | a variety of |
| Trade mark: | NO | Packing: | Wooden box |
| Output: | 10000 | Reinforcing Rib: | 2*10mm,5*20mm etc |
Inlet and Outlet Wire Wrapped Screen Baskets is made with high-quality stainless steel wire strip processing into a trapezoidal section, winding through automated production equipment, on the support bar, and then processed by cutting, welding and other processes to form a screening product.
Inlet and Outlet Wire Wrapped Screen Baskets type:
From inside to outside. Wire, Inside; Support rod, Outside.
1. Wire is the length of the screen pipe;
2. Support rod is the length of the screen pipe.
Inlet and Outlet Wire Wrapped Screen Baskets Features:
1, High mechanical strength, able to withstand greater pressure difference;
2, Uniform filter gap, can form a more uniform filter cake, conducive to regenerative regenerative;
3, Wedged filter gap, can improve the ability to regenerate backwashing;
4, Pressure, temperature resistance, resistance to aging, corrosion resistance, can be suitable for various fluids
5, Metal wedges. Metal mesh filter core is used as a filter element, which has the advantages of high mechanical strength, high-pressure tolerance and easy to wash.
Inlet and Outlet Wire Wrapped Screen Baskets Parameters :
| Material | SS304, SS304L, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| Length | Up to 6000mm | ||||||
| Inner Diameter | 60-3000mm | ||||||
| Slot / Gap | 25 micron to 2000 micron (Tolerance:+-5 micron) | ||||||
| Wedge Wire(mm) | 1x2 | 1.2x2 | 1.5x2 | 2x3 | 2x3.5 | 3x4.6 | 3x5 |
|
Support Rod (mm) |
2x3 | 2x3 | 2x3 | 2x3 |
3*4.6 3*5 3*6 |
3x4.6 3x5 3x6 |
3x5 3x6 |
| Ends | With Welded rings, Flange etc | ||||||
| Filter Type | From inside to outside | ||||||
| Reinforce | With or without | ||||||
| Note | All sizes are all customized, according to your requirement | ||||||
Inlet and Outlet Wire Wrapped Screen Baskets has easy leakage, wear and corrosion resistance and other characteristics.It is a rigid screening with high strength, stiffness and load capacity, can be made into various shapes of filters. Widely used in many industries in the screening, filtering, dehydration, mud removing and other operations.
