Name: | Johnson Screens Flat Panel Screens | Material: | Stainless Steel |
---|---|---|---|
Grade: | 304 | Screen Length: | 800 Mm |
Wire Width: | 380mm | Screen Width: | 430mm |
Slot Size: | 1.7mm | Wrap Wire: | 3*6mm |
Support Rod: | ø10mm Round Bar | NO. Of Bars: | 12 Pieces |
Package: | Woden Box | Polyurethane Frame: | 25*25mm |
Highlight: | aisi 304 wedge wire panels,polyurethane frame wedge wire panels,1.7mm slot wedge wire panels |
Attribute | Value |
---|---|
Name | Johnson Screens Flat Panel Screens |
Material | Stainless steel |
Grade | 304 |
Screen Length | 800 mm |
Wire Width | 380mm |
Screen width | 430mm |
Slot size | 1.7mm |
Wrap wire | 3*6mm |
Support rod | ø10mm round bar |
NO. of bars | 12 pieces |
Package | Woden box |
Polyurethane frame | 25*25mm |

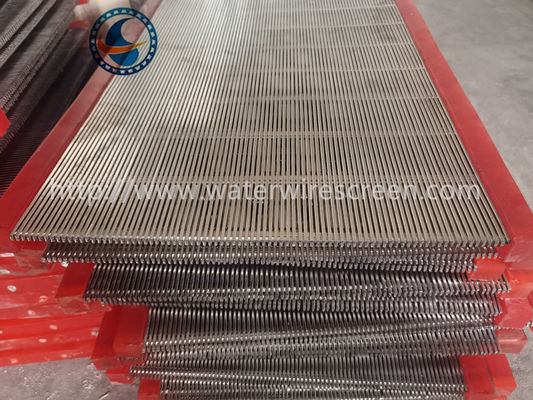

AISI 304 Johnson Screens Flat Panel Screens With Polyurethane Frame
HENGYUAN Johnson Screens Flat Panel Screens can be used in any number of industries. Our unique manufacturing process is the most advanced in the world and allows us to custom produce flat panel screens to fit any customer specifications.
The flat panel screens can be fabricated with very small wires and rods for critical fine-screening operations, or with much larger wires and rods for heavy-duty operations. According to the customer's needs and application, slot size is varied.
Johnson Screens flat panel screens can be used in food processing, malting, floor grating, wall covers and ventilating systems. Johnson's flat machines are unequalled in their ability to produce a screen that will meet specific requirements. The wire size can be as small as .020 inches with .001 inches slot openings on the fine side, to 1/2 inch wire and 1/2 inch slot opening for larger screens.
Material | Stainless steel |
Grade | 304 |
Dimension | 800*430mm |
Slot Size | 1.7 mm |
Width | 430mm |
Length | 800mm |
Type | Screen flat |
Wire size | 3*6 mm |
Support rod | ø10 mm |
Wire shape | Vee-wire shape |
Material: Stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Dimension: width up to 3000 mm, Length up to 3150mm
Specification of the wrap wire: 1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.
Specification of the rod: ø10mm round bar
Special specification can be made according to your need.
