| Name: | Johnson Type Screens And Tubes For Water Wells | Material: | Stainless Steel |
|---|---|---|---|
| Grade: | 304 | Slot Size: | 1.0 Mm |
| Diameter: | 114-426mm | Length: | 2.9m,5.8m |
| Wrpa Wire: | 2*3.5mm | Support Rod: | ø3.8mm |
| Open Area: | 33.3% | Surface: | Polished |
| Ends: | Welded Rings Or Male/female Threaded | Packing: | Plastic Film In Container |
| High Light: | ss304 johnson wedge wire screens,stainless steel johnson wedge wire screens,304 stainless steel johnson well screens |
||

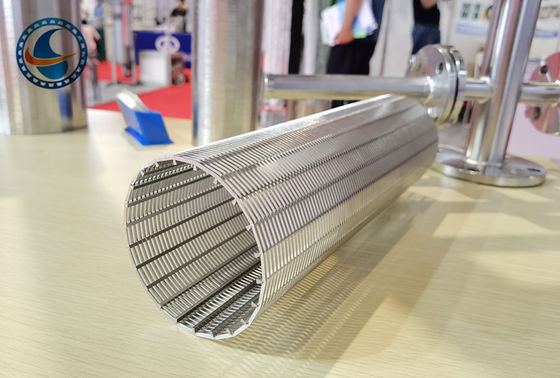

The SS Johnson type screens and tubes are a kind of metal mesh structure element used for screening and filtering.
Made of stainless steel wire by special equipment forming and welding.
Easy to leak, wear resistance, corrosion resistance cracks narrow on the bottom wide, not easy to plug.With high strength, steel and carrying capacity, it can be made
Screening and filtration equipment of various shapes.
Widely used in mining, coal, sewage treatment, oil, chemical fertilizer, food, salt, environmental protection and other industries in the screening, filtering,
Dewatering, desliming and other operations.
|
Name: Johnson screen,Water wire screen,Water well screen, Wire warp screen,Wedge wire screen, Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen. |
|||||||
| Material: Stainless steel 304,316L,Non-magnetic SS, Low carbon galvanized,904L,Duplex steel etc. | |||||||
| Diameter: From 29-1300mm (Normal diameter is in the below table) | |||||||
| Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table) | |||||||
| Length: From 100-6000mm (Normal length is 2.9m and 5.8m, to fit container) | |||||||
| Wrap wire:2*3.5mm,2.2*3.5mm,2.2*4.5mm,3*4.6mm,3*5mm,3*6mm,3*6.5mm,3.2*6mm etc. | |||||||
| Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire. | |||||||
| Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc. | |||||||
|
Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors &Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc. |
|||||||
|
Sizes (inch) |
OD (mm) |
Slot (mm) |
Length (m) |
Tenslie Strength |
Collapse Strength |
Wrap wire Vee-shaped wire(mm) |
Support rod wire(mm) |
| 3-1/2 | 88.9 | 1.0 | 2.9 | ＞22 | 10.2 | 2.2*3.5(Width*height) | ø3.8MM×22 |
| 4-1/2 | 114.3 | 1.0 | 2.9 | ＞28 | 11.5 | 2.2*3.5(Width*height) | ø3.8MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.2*3.5(Width*height) | ø3.8MM×32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.2*3.5(Width*height) | ø3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0(Width*height) | ø6.0MM×32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5(Width*height) | ø3.8MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0(Width*height) | ø4.0MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0(Width*height) | ø5.0MM×48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.2*3.5(Width*height) | ø4.0MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*4.6(Width*height) | ø4.8MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0(Width*height) | ø5.0MM×55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0(Width*height) | ø4.0MM×56 |
| 14 | 355.6 | 1.0 | 2.9 | ＞80 | 37.8 | 3.0*5.0(Width*height) | ø4.0MM×59 |
| 16 | 426 | 1.0 | 2.9 | ＞80 | 37.5 | 3.0*5.0(Width*height) | ø4.0MM×54 |
