Product Details:
Payment & Shipping Terms:
|

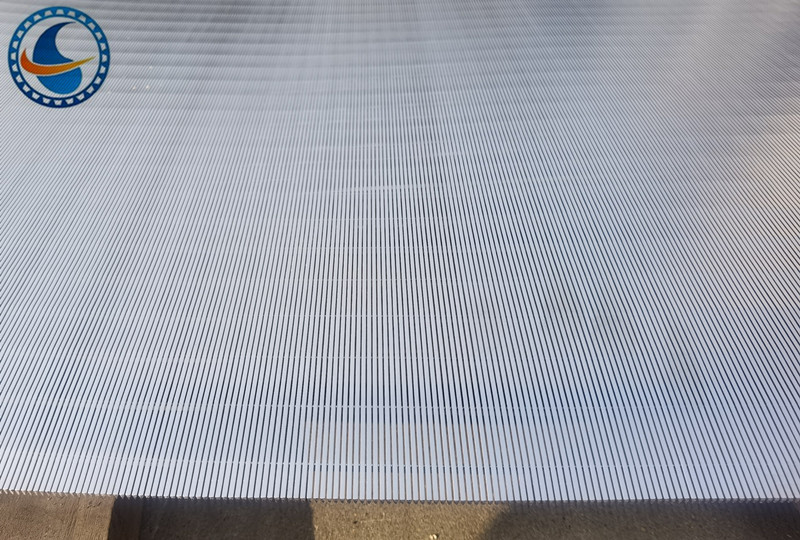

| Name: | Flat Profile Wire Screen Panels | Material: | Stainless Steel |
|---|---|---|---|
| Grade: | 316L | Slot Size: | 0.8mm |
| Length: | 3500mm | Width: | 1650mm |
| Wire Size: | 1.5*2mm Vee Wire | Support Rod: | 2*3mm Vee Wire |
| Surface: | Acid Washing | Package: | Wooden Box |
| High Light: | grain industry wedge wire sheets,flat profile wedge wire sheets,grain industry wedge wire screen panels |
||
Currently, Flat profile wire screen panels are widely used in the industry, agriculture, construction, brewing, greening and grain screening industries. Then, how important is the wedge wire screen panel in the grain industry?
Flat profile wire screen panel plays two important roles in grain industry: drying and screening.
Drying
Air continuously passes through the wedge wire screen panel, keeping the grain fresh and drying quickly. By improving ventilation in grain bins, grains can remove moisture quickly and prevent bacterial growth. Therefore, grains are stored in good conditions as seeds, thereby leading to greater grain yield.
Screening
When storing grains, impurities such as debris, pebbles, and particles may be mixed in. We can determine the slot size of the wedge wire screen panel according to the size of the grain to screen the impurities out and ensure the cleanliness of the grain.
Flat profile wire Screen Panels also be named Vee-Wire screen panel ,Continuous slot Vee-wire screen plate,
Wire wrapped screen plate,Wire wound screen panel ,water filter.
It is made up of Vee-shaped wrapped wire and round rod in each intersection,welded together.
Accurate slot and high filtration precision.
Flat profile wire Screen Panel is a metal mesh structure element used for screening and filtering. Suitable for screening, filtration, dehydration, desliming and other operations in many industries. It has the strength, stiffness and carrying capacity to be made into a variety of shapes of rigid screening filtration devices.
|
Outside Diameter(mm) |
Length (mm) | Slot (mm) | Styles of connection |
|
29,38,42,57,63,76, 89,108,150,168,320, 600,900,985,1278 etc. |
1000,2000, 3000,4000 |
0.025-100 |
Welded rings,flange, male/female threaded coupling closed up etc. |
| Explanation |
Besides above of the specification screen pipe, we also can act according to the customer’s request the manufacture diameter from ￠ 25mm- ￠ 1270mm, the length from the 100mm-6000mm screen pipe. |
||
