Product Details:
Payment & Shipping Terms:
|

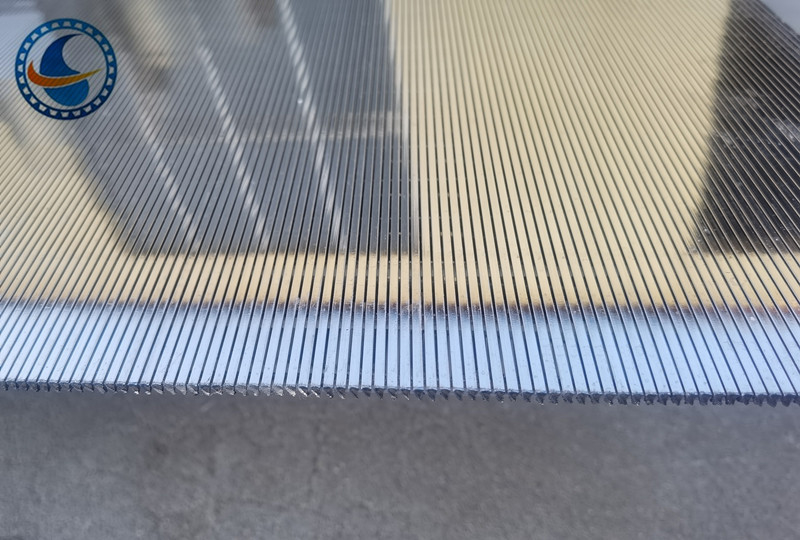

| Name: | Wedge Wire Screen Panels | Material: | Stainless Steel |
|---|---|---|---|
| Grade: | 304 | Slot Size: | 0.025-100mm |
| Length: | 3000mm | Width: | 3000mm |
| Wire Size: | 1.5*2.5mm | Support Rod: | 2*3mm |
| Surface: | Acid Washing | Package: | Wooden Box |
| High Light: | 100mm slot wedge wire screen panels,wedge wire screen panels sus customized,100mm slot wedge wire panels |
||
With a complete range of modular screen panels for mineral processing, Hengyuan ensures your screen deck is optimised to achieve your required cut size efficiently, reliably and over an extended service life.
Stainless Steel wedge wire Screen Panels are all custom made and can be designed and built to fit any screening equipment in any specified width and length. Need a flat screen filter panel on an extra-large scale? No problem. Plus, size, shape and spacing of profile wire are engineered to meet your special job requirements. Individual wire on the working surface of each falt wedge wire screen can be manufactured at a tilt to better serve your needs.
It is available in a wide variety of shapes and sizes. From two basic forms, slot tubes and flat screens, almost all shapes and sizes can be developed to fit customers´ requirements.
According to your requirements, we can process and manufacture various shapes of sieve plates.
|
Outside Diameter (mm) |
Length (mm) | Slot (mm) | Styles of connection |
|
29,38,42,57,63,76,89,108,150, 320,500,600,900,985,1000 |
1000,2000, 3000,4000 etc |
0.05,0.1,0.25, 0.5,1.0 etc |
Welded rings, male/female threaded coupling, flange,closed up etc. |
| Explanation |
Besides above of the specification screen pipe, we also can act according to the customer’s request the manufacture diameter from ￠ 25mm- ￠ 1300mm, the length from the 100mm-6000mm series screen pipe |
||
