Product Details:
Payment & Shipping Terms:
|
| Name: | Wedge Wire Screen Filter Nozzle | Material: | Stainless Steel 304 Or 316L |
|---|---|---|---|
| Diameter: | 53mm | Length Of Screen: | 45mm |
| Slot: | 0.25mm | Male Threaded: | M32 Male Threaded |
| Threaded Length: | 45mm | Nut: | 2 Nuts |
| High Light: | ss filter nozzle for water treatment,wedge filter nozzle for water treatment |
||

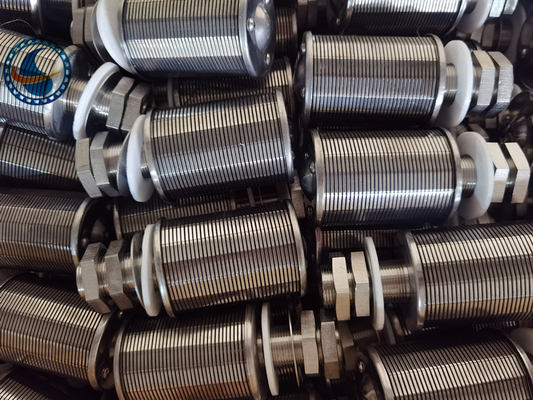

Wedge Wire Screen Filter Nozzles as the important parts used in the water treatment equipment for power plant,waste water processes, the Vee shape wire are stainless steel AISI 316L.Slot size from 0.2 to 0.25mm.
We can manufacture single wedge wire screen nozzle,double wedge wire nozzle,also used in the lon exchanger.
Continuous slot design provides increased open area for better collection.
Material: SS 304, 316L, 904L, 2205, 2507, C276… (SS304 material can meet most of the use environment)
Wire size: 1.50mm (or other sizes as your need)
Slot size: 0.01" - 0.3"
Length: 50-100mm in usual
Diameter: 45mm, 53mm, 57mm, 70mm
Structure: Wedge wire screen pipe + Cover plate + Thread + Nuts & Gaskets
Application: Water treatment, sand filter, water softening, desalination.
|
(NO.) |
(Type) |
(Flow) |
(Slot)(mm) |
(Size) |
0.2-0.25mm slot opening area of through-flow |
|||
| D | H | L | M | |||||
| 1 | TYS45-1-C | 0.5 | 0.2-0.5 | 45 | 45 | 95 | 24 | 550-690 |
| 2 | TYS53-2-B | 1 | 0.2-0.5 | 53 | 45 | 100 | 24 | 680-710 |
| 3 | TYS53-2-C | 1.5 | 0.2-0.5 | 53 | 50 | 110 | 32 | 800-920 |
| 4 | TYS57-3-B | 2 | 0.2-0.5 | 57 | 45 | 110 | 32 | 660-790 |
| 5 | TYS70-4-B | 3 | 0.2-0.5 | 70 | 55 | 120 | 32 | 905-1100 |
