Ss 316 Slot 40 Wedge Wire Screen Filter Johnson Type

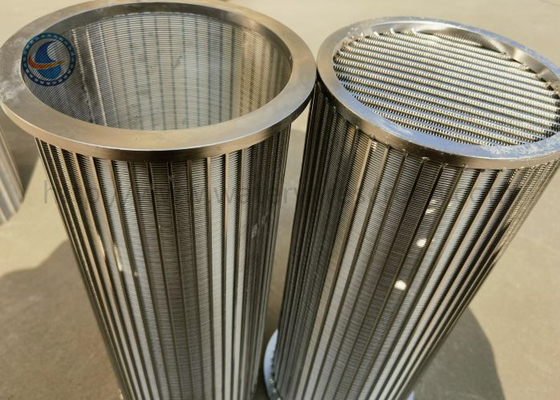

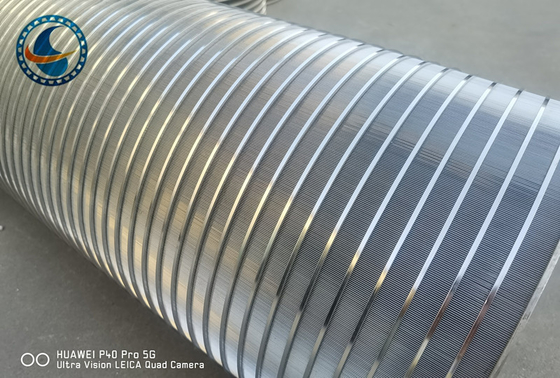

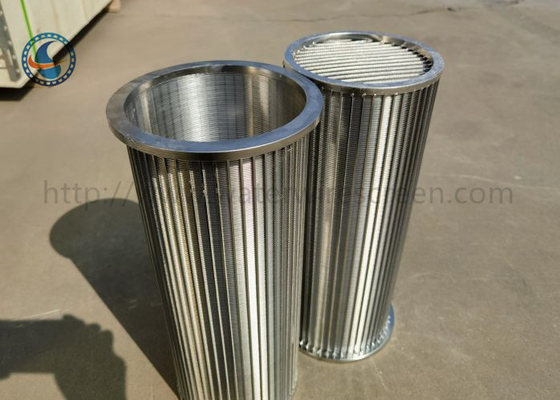

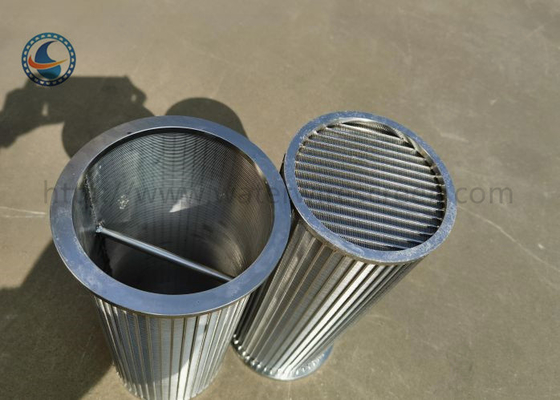

SS 316 Slot 40 Johnson Type Wedge Wire Backwash Filter Tube for filter cartridge

Description:

SS 316 Slot 40 Johnson Type Wedge Wire Backwash Filter Tube for filter cartridge is composed of V-shaped profile wires and longitudinal support rods, so that the adjacent wires are formed into a tube body with a fixed value groove. The custom grooves are CNC machined to ensure uniform gaps, and each intersection of these wires is fusion welded, giving it a solid structure and good mechanical properties. The opening of the tank is V-shaped, the internal opening is small, and the external opening is large. The filter will not miss impurities from the inside to the outside, and it can be backwashed from the outside to the inside to avoid clogging and prolong the service time of the screen filter element.

Profile wires and support rods can be axial or radial wires. Mainly includes internal filtering, external direction
filter. Depending on the application, we can design the flow direction and shape to meet the application requirements.
We can also customize wedge wire filter elements such as filter tubes and filter baskets according to customer requirements.

Services

1. Various samples can be provide.
2. The FOB,CIF, CFR price are all available.
3. If there are unqualified products, support for replacement.
4. The package detail, mesh size can be customized.

Type:

Filter from inside to outside
1. The inner wire is wound and the slot is circumferential, and the outer support bar is vertical
2. The inner winding and the slit are vertical, and the outer support bar is circumferential

Machinable form: welding flange, reinforcing plate, bottom support, axial round pipe, cutting round hole, cutting slope, etc.

 Application:

Architecture & Construction

Food & Beverage Screens

OEM Screen Components

Refining & Petrochemical

Waste Water Treatment

Water Well & Oil well

Coal & Mine

Chemical industry

Pharmacy

Food and beverage

Metallurgy

Coal mining

Environmental protectio

The characteristics of:

Reverse V Slot Wedge Wire Drum Screen is widely used in oil, gas and water wells for sand prevention and its application in chemical industry, environmental protection and other industries.

It is the most widely used filter screen in all kinds of oil, water resources recycling and resin collection.
The world's most advanced full wound welding process in the world is adopted by the Johnson Vee-shaped wire winding screen.

The special stainless steel trapezoid (wedge-shaped) wire winding is welded on a group of longitudinal support rods arranged in a round round arrangement, thus ensuring its strength and service life.

Due to the adoption of full program welding, not only the strict integrity of the product is ensured, but also the ideal gap size is formed. Compared with the commonly used welding technology in China, the full welded wedged wire winding screen tube, filter pipe, water cap, water distributor, resin trap and sieve plate have the characteristics of smooth tube surface, no production edge angle, no burr, uniform gap and no grease leakage.
