Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel 316L 304 321 2205 2507 | Diameter: | 10-3/4" |
|---|---|---|---|
| Slot: | 0.5mm1.0mm | Unit Length: | 2.9m Or 5.8m |
| Wire Size: | 3*4.6mm | Support Rod Size: | ø4.2mm Round Wire |
| End Connection: | Welded Rings/ Thread Couplings | Technique: | Point Welding |
| Application:: | Water Filtration | Package: | Plastic Film |
| High Light: | 304 Stainless Steel Slot Tube,316L Stainless Steel Slot Tube,316L Ss Slotted Pipe |
||

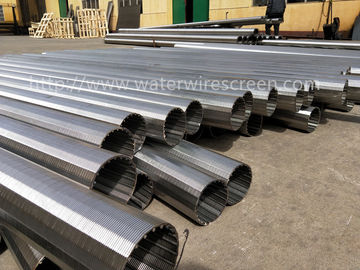

Stainless Steel Slot Tube Screen FIlter Tube Water Well Screen Pipe is manufactured by a "V" or wedge shaped wire around an internal array of longitudinal support rods. Each intersecting point of these wires is fusion welded.
The "V" or wedge shaped profile wire wraps around support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well
In order to achieve the best filtration and use effect, and at the same time meet the requirements of all users in the industrial industry to save water, electricity and labor, please consult the dealer. Authorized agents and distributors have received professional technical training from experts. They will make the best choice for you with their professional knowledge, rich market experience, and rigorous scientific attitude. Generally there are the following points:
1. Treated water volume
2. Pipeline pressure of the system, selection of wire gauge in Schroeder screen
3. The filtering accuracy required by the user, that is, the filtering gap
4. Filter the concentration of suspended solids in impurities
5. The relevant physical and chemical properties of the filter medium to select the product material
6. The length and diameter of the Schroeder screen equipped in the filter equipment
Application Of Downhole Slotted Tube For Water Filtration
This Downhole Slotted Tube is a kind of filtered water tubing with the perforation. It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum production.
| Material | Low carbon galvanized, Also can be make stainless steel or other material | ||||||||
| Outer Diameter | 6-5/8", Also can make other size | ||||||||
| Inner Diameter | 152mm, Also can make other size | ||||||||
| Length | 2.9m or 5.8m in usual, Also can make other size according to your request | ||||||||
| Slot | 0.5mm,0.63mm,0.75mm,1.0mm in usual, also achieved upon request. | ||||||||
| Wedge Wire size | Width(mm): 2.0, 2.2, 3 .0, 3.2 etc. Height(mm): 3.5, 4.6, 5.0, 6.0 etc. |
||||||||
| Support Rod size | ø3.0-5.0mm round wire, Also can be Vee shaped Wire | ||||||||
| End connection | Welded rings, Also can be Flange, closed, male/female threaded etc | ||||||||
This is the normal sizes we make, We can make other size according to your drawing !
Please feel free to contact me if you have any enquiry.
