Gas Wire Wrapped Well Screen Welded Ring / Thread Couplings / Flange Supported

Gas Wire Wrapped Well Screen Welded Ring / Thread Couplings / Flange Supported

Large Image :  Gas Wire Wrapped Well Screen Welded Ring / Thread Couplings / Flange Supported

Product Details:
Place of Origin: Hebei
Brand Name: Hengyuan
Certification: ISO, CIQ, CQ
Model Number: HY003
Payment & Shipping Terms:
Minimum Order Quantity: 1 meter
Packaging Details: wooden box, container
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detailed Product Description
Support Rod: 2*3mm 3*4.6mm 3*5mm 3.2*6mm Slot Size: Min 0.025mm
End Connection: Welded Ring/ Thread Couplings/ Flange Wire Size: 1*2mm 1.5*2.5mm 2*3mm 2.2*3.5mm 3*4.6mm
Application: Oil, Gas, Water, Etc. Edge Treatment: Welded, Wrapped, Etc.
Diameter: 25-1000mm Corrosion Resistance: Acid, Alkali, Etc.
Highlight:

welded ring wire wrapped screen

,

gas wire wrapped well screen

,

thread couplings wire wrapped well screen

Gas Wire Wrapped Well Screen Welded Ring / Thread Couplings / Flange Supported
Product Specifications
Attribute Value
Support Rod 2*3mm, 3*4.6mm, 3*5mm, 3.2*6mm
Slot Size Min 0.025mm

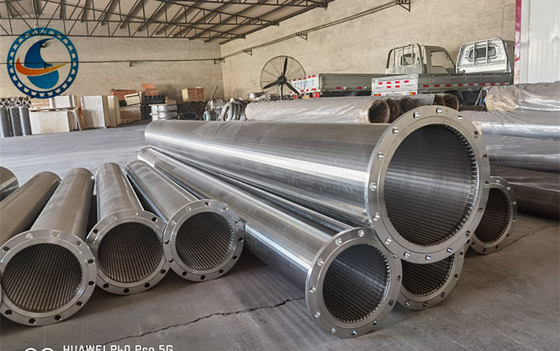

End Connection Welded Ring/Thread Couplings/Flange
Wire Size 1*2mm, 1.5*2.5mm, 2*3mm, 2.2*3.5mm, 3*4.6mm
Application Oil, Gas, Water, Etc.
Edge Treatment Welded, Wrapped, Etc.
Diameter 25-1000mm
Corrosion Resistance Acid, Alkali, Etc.
Product Description

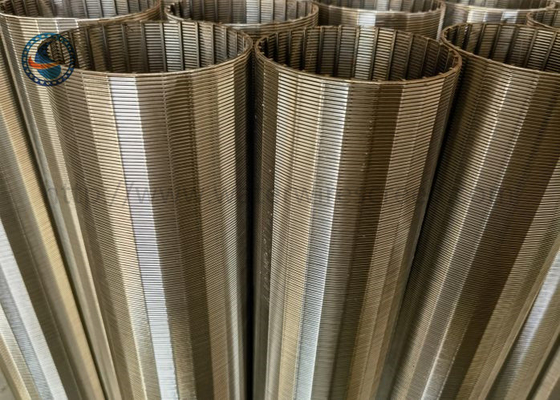

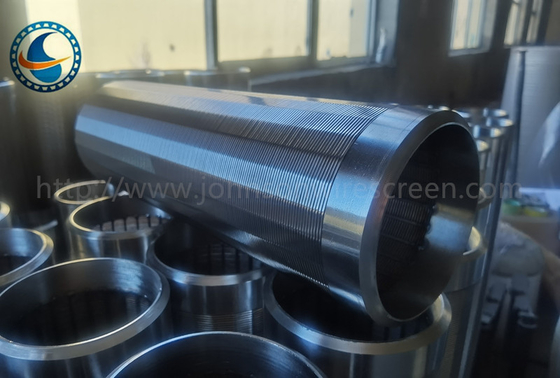

Profilte wire wrapped screen is used for water and oil filtration, and is manufactured by a "V" or wedge shaped wire around an internal array of longitudinal support rods. The wires intersect at each point and are fusion welded.

The profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, and thus allowing ample quantities of water and oil to pass through freely. The majority of sand and gravel, however, are kept out.

Key Features
  • High mechanical strength to withstand large pressure drops
  • Equal slots for even filtration distribution and easy cleaning
  • Wedge type slot design enhances backflushing and regeneration
  • Excellent resistance to pressure, temperature, aging, and corrosion
  • Suitable for filtering multiple types of fluids
Technical Parameters
Parameter Value
Material Stainless Steel
Advantage High Strength, Good Wear Resistance, Etc.

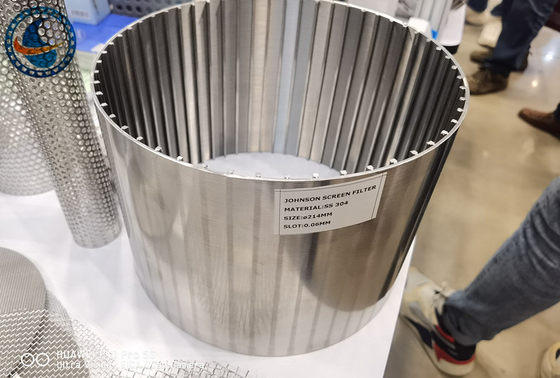

Filter Type Johnson Screen, Profilte Wire Wrapped Screen, Wedge Wire Screen
Applications

Wedge wire screen has been widely utilized in many industries due to its versatility and efficiency. Common applications include:

  • Mining, coal, petroleum, fertilizer, grain, and salt industries
  • Environmental protection applications
  • Sieving liquids, powders and other materials
  • Purification in petroleum, chemical, metallurgy, mining, and pharmaceutical industries
  • Drilling liquid purification processes
Customization Options

We offer comprehensive customization services for wire wrapped screens:

  • Model Number: HY003
  • Minimum Order Quantity: 1 meter
  • Packaging: Wooden box and container options
  • Delivery Time: 5-8 work days
  • Manufactured and shipped from Hebei, China
Packaging and Shipping

Wire wrapped screens are packaged in sturdy cardboard boxes to prevent transit damage, with clear product labeling for easy identification.

Shipping options include ground transportation (trucking or rail) with air freight available for expedited delivery. Costs vary based on order size, weight, and destination.
