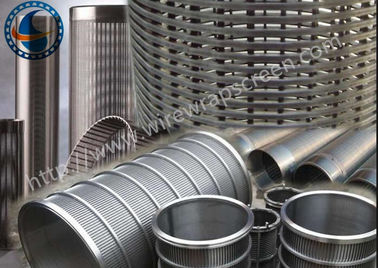

Durable Rotary Drum Screen Filter Non Plugging For Petroleum Industry

Durable Rotary Drum Screen Filter Non Plugging For Petroleum Industry
Durable Rotary Drum Screen Filter Non Plugging For Petroleum Industry Durable Rotary Drum Screen Filter Non Plugging For Petroleum Industry

Large Image :  Durable Rotary Drum Screen Filter Non Plugging For Petroleum Industry

Product Details:
Place of Origin: Anping, Hebei, China
Brand Name: Hengyuan
Certification: ISO, CIQ, CE, SGS
Model Number: OD:50-2000mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: Discussible price
Packaging Details: Wooden box
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 square meters per day
Detailed Product Description
End Connection: Welded Rings, Closed Up, Flange,open Ends Etc.. Material: Stainless Steel 304, 316L,321 Or Other Material As Your Request
Slot: 0.05mm-50mm Length: 3m
High Light:

wire cylinder basket

,

rotary sand screen

Stainless Steel Reverse Rotary Screen Drum Used In Wastewater Treatment





It is other type of wedge wire screen.

Wedge wire screen, the filter type is : From outside to inside (FOTI).

This reverse wedge wire screen, the filter type is :From inside to outside(FITO).



It is with v-shaped cross-section of the stainless steel wire welded on framework, precision filter slot formed between every two adjacent wrap wire, facilitate the back flush filter residue can be ruled out smoothly, to achieve continuous water supply function.



Specification:


Material Stainless steel
Grade 304
I.D 150-1000 mm, 250 MM
Slot Size 0.1 - 30 mm, 0.75 mm
Components Flange, handle
Length 300-3000mm, 1.1m,
Filter type From inside to outside
Wire size 2*3.5 mm
Support rod 3*4.6 mm
Wire shape V shape



Regular Specifications:



Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

I.D.: 150 - 1000 MM

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Length: 300mm-3000mm

Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.

Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.

Filter Type: from inside to outside.

The wedge wire is circle, and the support rod is vertical.

Other components : Flange, stiffener, lifting handle, and other type components by request.



Special specification can be made according to your need.



Advantages reverse rotary screen drum offer when compared to other types of screen:



1. The wedge tapered opening becomes progressively wider increasing dewatering efficiency



2. Non plugging,to make sure the smooth circulation



3. Slot sizes ranging form0.05mm to 100mm



4. Durable and capable of carrying heavier loads without support structures



5. One piece construction



6. Wide range of materials



7. Easy to clean,long service life,safe and reliable,low comprehensive cost





There's three types:

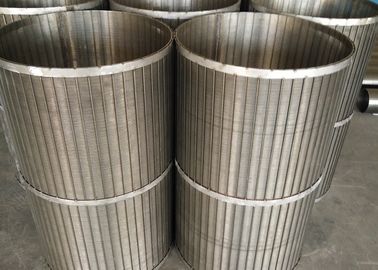

Durable Rotary Drum Screen Filter Non Plugging For Petroleum Industry 0

Durable Rotary Drum Screen Filter Non Plugging For Petroleum Industry 1
