|Slot Size:||0.5mm||Diameter:||500 Mm|
|Length:||1000mm||End Connection:||Welded Rings|
wire cylinder basket,
rotary sand screen

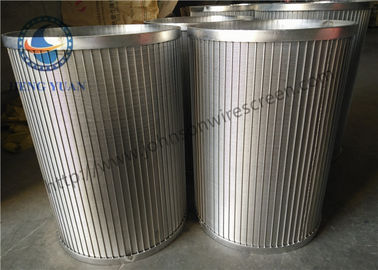

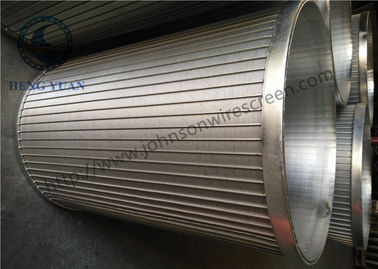

Stainless Steel 304 Reverse Wedge Wire Rotary Screen Drum Cylinder Water Treatment
Reverse Wedge wire screen cylinder is made by Johnson screen mesh through reverse welding . Johnson screen mesh is welded by V wire and support rod.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development. The finished reverse wedge wire screen cylinder have a smooth inside.The filter screen cylinder has a number of longitudinal and horizontal ribs on the outside, greatly enhancing the anti-crushing strength of the sieve cylinder, especially suitable for sieving cylinder with rotating blades inside the extruder.
|I.D||150-1000 mm, 500 MM|
|Slot Size||0.1 - 30 mm, 0.5 mm|
|Filter type||From inside to outside|
|Wire size||2*3.5 mm|
|Support rod||3*4.6 mm|
|Wire shape||V shape|
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.
Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.
Filter Type: from inside to outside.
Other components : Flange, stiffener, lifting handle, and other type components by request.
Special specification can be made according to your need.
Not easy to jam
the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.
The CNC machine tools strictly control the gap between the wire, so that the gap is even.
Strong corrosion resistance
Stainless steel have the high corrosion resistance
Easy to backwash, clean without dead Angle.
Filter from inside to outside , and the outside slot is bigger than inside slot, so it is easy to bakc flush.
Built-in scraper, brush, suction first class cleaning device.
Chemical, petrochemical, sewage treatment, steel, urban water treatment, farmland irrigation, fruit and vegetable dehydration, solid liquid separation, livestock manure dehydration.
