Stainless Steel 316 Reverse Johnson Screen Rotary Screen Drum Cylinder Back Flush Screen
Product Description:
Reverse Wedge wire screen cylinder is made by Johnson screen mesh through reverse welding . Johnson screen mesh is welded by V wire and support rod.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development. The finished reverse wedge wire screen cylinder have a smooth inside.The filter screen cylinder has a number of longitudinal and horizontal ribs on the outside, greatly enhancing the anti-crushing strength of the sieve cylinder, especially suitable for sieving cylinder with rotating blades inside the extruder.
.
Specification:
| Material |
Stainless steel |
| Grade |
304 |
| I.D |
150-1000 mm, 250 MM |
| Slot Size |
0.1 - 30 mm, 0.75 mm |
| Components |
Flange, handle |
| Length |
300-3000mm, 1.1m, |
| Filter type |
From inside to outside |
| Wire size |
2*3.5 mm |
| Support rod |
3*4.6 mm |
| Wire shape |
V shape |
Stainless Steel Reverse Rotary Screen Drum Used In Wastewater Treatment
It is other type of wedge wire screen.
Wedge wire screen, the filter type is : From outside to inside (FOTI).
This reverse wedge wire screen, the filter type is :From inside to outside(FITO).
It is with v-shaped cross-section of the stainless steel wire welded on framework, precision filter slot formed between every two adjacent wrap wire, facilitate the back flush filter residue can be ruled out smoothly, to achieve continuous water supply function.
Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.
Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.
Filter Type: from inside to outside.
The wedge wire is circle, and the support rod is vertical.
Other components : Flange, stiffener, lifting handle, and other type components by request.
Special specification can be made according to your need.
Advantages:
adoption of the wedged wires made a V profile slot. This design ensures the fluent of water filtration and more effective
The CNC machine tools strictly control the gap between the wire, so that the gap is even.
Stainless steel have the high corrosion resistance.
Filter from inside to outside , and the outside slot is bigger than inside slot, so it is easy to bakc flush.
Apply to Built-in scraper, brush, suction first class cleaning device.
easy operation, fine permeability, unaffected by temperature, long life service, safety and reliability, low comprehensive cost.
Industry:
Chemical, petrochemical, sewage treatment, steel, urban water treatment, farmland irrigation, fruit and vegetable dehydration, solid liquid separation, livestock manure dehydration.

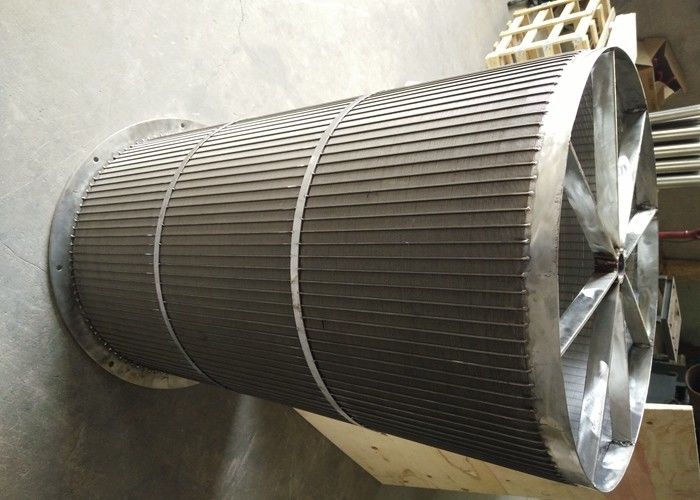

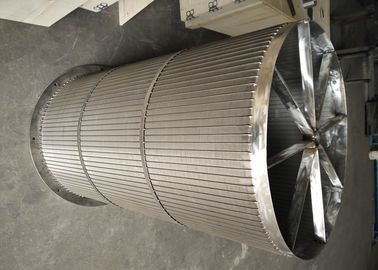

Pictures:
