Stainless Steel Reverse Rotary Screen Drum High Corrosion Resistance

Large Image : Stainless Steel Reverse Rotary Screen Drum High Corrosion Resistance

Product Details:

Place of Origin:	Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO9000
Model Number:	HY0010

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	according to the specifications
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Grade:	316L
Slot Size:	0.75 Mm	Diameter:	560 Mm
Length:	800 Mm	Components:	Flange
Package:	Woden Box,Container
Highlight:	rotating drum screen , rotary sand screen

Stainless Steel Reverse Rotary Screen Drum High Corrosion Resistance

Product Attributes

Attribute	Value
Material	Stainless steel
Grade	316L
Slot size	0.75 mm
Diameter	560 mm
Length	800 mm
Components	Flange
Package	Woden box, Container

Product Description

Stainless Steel 316 Reverse Johnson Screen Rotary Screen Drum Cylinder Back Flush Screen

Reverse Wedge wire screen cylinder is made by Johnson screen mesh through reverse welding. The liquid flows from inside to outside. It features a V-shaped cross-section of the stainless steel wire welded on framework, with precision filter slots formed between every two adjacent wrap wires. This design facilitates back flushing to remove filter residue smoothly, achieving continuous water supply function.

Specifications

Material: Stainless steel
Grade: 316L
I.D: 150-1000 mm (560 mm standard)
Slot Size: 0.1 - 30 mm (0.75 mm standard)
Components: Flange
Length: 300-3000mm (800 mm standard)
Filter type: From inside to outside
Wire size: 2*3.5 mm
Support rod: 3*4.6 mm
Wire shape: V shape

Regular Specifications

Materials available: Stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 mm
Slot: 0.1mm - 35mm
Discrepancy: ±0.05mm
Length: 300mm-3000mm
Wrap wire specifications: 1*2 mm, 2*3 mm, 2.2*3.5 mm, 3*4.6 mm, etc.
Rod specifications: 2*3 mm, 3*4.6 mm, 3*5 mm, 4*4 mm (square shape), etc.
Filter Type: From inside to outside
Wire configuration: Wedge wire is circular, support rod is vertical
Additional components: Flange, stiffener, lifting handle, and other custom components available upon request

Special specifications can be made according to your needs.

Advantages

More effective: Wedged wires with V profile slot ensure fluent water filtration and higher efficiency
Slot evenness: CNC machine tools strictly control wire gaps for uniform slot spacing
High corrosion resistance: Stainless steel construction provides excellent corrosion resistance
Back flush capability: Outside slot is larger than inside slot for easy back flushing
Better practicality: Compatible with built-in scraper, brush, suction and other cleaning devices

Industries Served

Chemical, petrochemical, sewage treatment, steel, urban water treatment, farmland irrigation, fruit and vegetable dehydration, solid liquid separation, livestock manure dehydration.

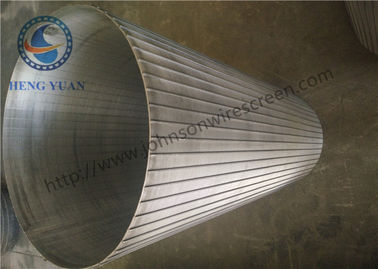

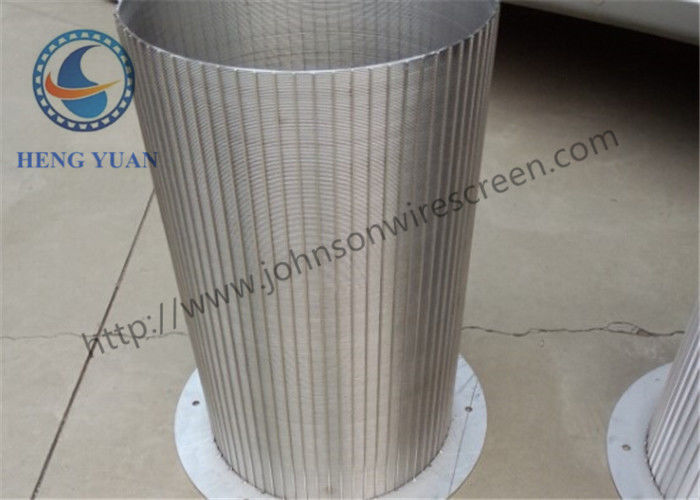

Product Images
