| Material: | Stainless Steel | Grade: | 316L |
|---|---|---|---|
| Slot Size: | 0.75 Mm | Diameter: | 560 Mm |
| Length: | 800 Mm | Components: | Flange |
| Package: | Woden Box,Container | ||
| High Light: | rotating drum screen,rotary sand screen |
||
Johnson Strainer Screen Inside Filter Cylinder Stainless Steel Screw Press Screen
Stainless Steel Screw Press Screen Product Description:
Stainless Steel Screw Press Screen consist of V shape profile wire and the longitudinal support rods. Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy constriction and good mechanical property. Avoid the sand entering the screen under the great pressure ,so it can filter sand better.
.
Stainless Steel Screw Press Screen Specification:
| Material | Stainless steel |
| Grade | 304 |
| I.D | 150-1000 mm, 485 MM |
| Slot Size | 0.1 - 30 mm, 0.75 mm |
| Components | Flange |
| Length | 300-3000mm, 950 mm, |
| Filter type | From inside to outside |
| Wire size | 2*3.5 mm |
| Support rod | 3*4.6 mm |
| Wire shape | V shape |
Stainless Steel Screw Press Screen Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Filter Type: from inside to outside.
The wedge wire is circle, and the support rod is vertical.
Other components : Flange, stiffener, lifting handle, and other type components by request.
| SIZES OF THE WIRE AND ROD | ||||||
| Wire | ||||||
| Width(mm) | 1.0 | 1.2 | 1.5 | 2.3 | 3.0 | |
| Height(mm) | 2.0 | 2.2 | 2.5 | 3.5 | 4.6 | |
| Rod | Round wire | |||||
| Width(mm) | 2.3 | 2.3 | 3.0 | 3.7 | 3.3 | Diameter |
| Height(mm) | 2.7 | 3.5 | 4.6 | 5.6 | 6.3 | 0.25-0.5m |
Special specification can be made according to your need.
Stainless Steel Screw Press Screen Advantages:
1. High efficiency and high performance
2. Easy to move and install
3. Easy and convenient operation
4. Strong body
Stainless Steel Screw Press Screen Industry:
* water treatment including drinking and photographic use as well river water, sea water,
* Food and drink industry beverage and food products,
* Bright quenching and cutting fluids,
* Chemical and petroleum industry, plating solutions, oils and distillates, industrial liquids of every kind.
Stainless Steel Reverse Rotary Screen Drum Used In Wastewater Treatment
It is other type of wedge wire screen.
Wedge wire screen, the filter type is : From outside to inside (FOTI).
This reverse wedge wire screen, the filter type is :From inside to outside(FITO).
It is with v-shaped cross-section of the stainless steel wire welded on framework, precision filter slot formed between every two adjacent wrap wire, facilitate the back flush filter residue can be ruled out smoothly, to achieve continuous water supply function.

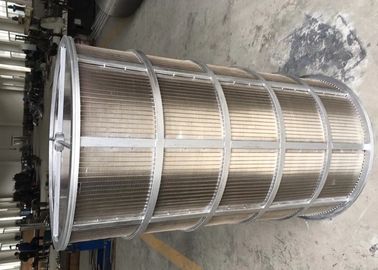

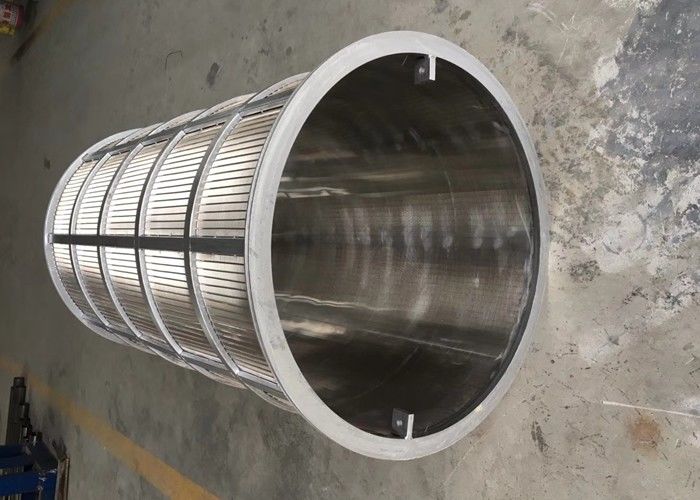

Stainless Steel Screw Press Screen Pictures:
