Anti Aging Rotary Screen Drum , Johnson V Wire Mesh Drum Long Service Life

Anti Aging Rotary Screen Drum , Johnson V Wire Mesh Drum Long Service Life
Anti Aging Rotary Screen Drum , Johnson V Wire Mesh Drum Long Service Life Anti Aging Rotary Screen Drum , Johnson V Wire Mesh Drum Long Service Life

Large Image :  Anti Aging Rotary Screen Drum , Johnson V Wire Mesh Drum Long Service Life

Product Details:
Place of Origin: Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: HY0010
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: according to the specifications
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Material: Stainless Steel Grade: 304,304L, 316L, 321
Slot Size: 1.0 Mm Diameter: 520 Mm
Length: 600 Mm Components: None, As The Customer's Requirement
Package: Woden Box,Container
High Light:

rotating drum screen

,

rotary sand screen

Reverse Johnson Screen Suit To Back Flush Rotary Screen Drum Stainless Steel





Stainless Steel Back Flush Screen Specification:



Material Stainless steel
Grade 304
I.D 150-1000 mm, 520 MM
Slot Size 0.1 - 30 mm, 0.75 mm
Components None
Length 300-3000mm, 700 mm,
Filter type From inside to outside
Wire size 2*3.5 mm
Support rod 3*4.6 mm
Wire shape V shape





Stainless Steel Back Flush Screen  Product Description:



Stainless Steel Back Flush Screen  consist of V shape profile wire and the longitudinal support rods. Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy constriction and good mechanical property. Avoid the sand entering the screen under the great pressure ,so it can filter sand better. There are two types of the screen, inside circle wire and the inside veritical wire. The slot is circle or vertical too. The type can be made by the customer's requirement to suit to your filter function better.

.

Stainless Steel Back Flush Screen  Regular Specifications:



Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

I.D.: 150 - 1000 MM

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Length: 300mm-3000mm

Filter Type: from inside to outside.

Slot type: Inside circle wire and slot. inside vertical wire and slot.

Other components : Flange, stiffener, lifting handle, and other type components by request.



SIZES OF THE WIRE AND ROD
Wire
Width(mm) 1.0 1.2 1.5 2.3 3.0
Height(mm) 2.0 2.2 2.5 3.5 4.6
Rod           Round wire
Width(mm) 2.3 2.3 3.0 3.7 3.3 Diameter
Height(mm) 2.7 3.5 4.6 5.6 6.3 0.25-0.5m



Anti Aging Rotary Screen Drum , Johnson V Wire Mesh Drum Long Service Life 0




Special specification can be made according to your need.



Characteristic:



1. The Screen drum was made by rods and wrapped wires, of which the rods can be V Shaped profile or wedged profile, the wrapped wire is V shaped.
2. With precise slot size, high filtration accuracy is assured
3. Firm structure, heat and corrosion resistance, very good mechanical performance
4. Long life span, safety and reliability, can be used as the filter of various medium.



Industry:



* water treatment including drinking and photographic use as well river water, sea water,
* Food and drink industry beverage and food products,
* Bright quenching and cutting fluids,
* Chemical and petroleum industry, plating solutions, oils and distillates, industrial liquids of every kind.



Pictures:

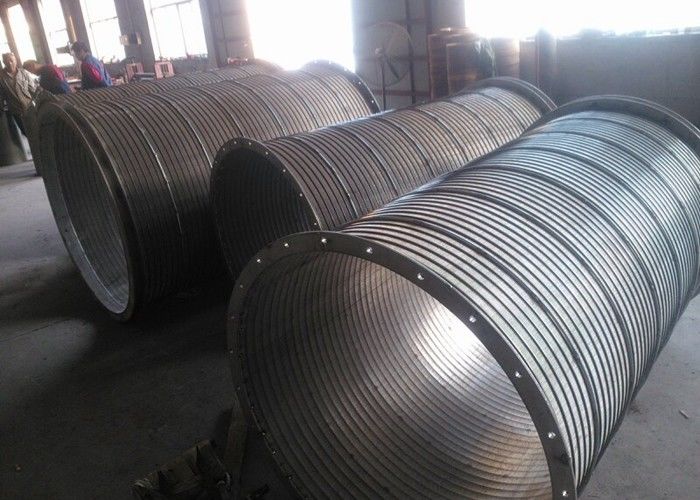

Anti Aging Rotary Screen Drum , Johnson V Wire Mesh Drum Long Service Life 1



Package:



Anti Aging Rotary Screen Drum , Johnson V Wire Mesh Drum Long Service Life 2
