Large Diameter Reverse Rotary Screen Drum For Urban Water Treatment

Large Image : Large Diameter Reverse Rotary Screen Drum For Urban Water Treatment

Product Details:

Place of Origin:	Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO9000
Model Number:	HY0010

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	according to the specifications
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Grade:	304
Slot Size:	1.0 Mm	Diameter:	520 Mm
Length:	600 Mm	Components:	None, As The Customer's Requirement
Package:	Woden Box,Container
Highlight:	wire cylinder basket , rotary sand screen

Large Diameter Reverse Rotary Screen Drum For Urban Water Treatment

Product Specifications

Attribute	Value
Material	Stainless steel
Grade	304
Slot size	1.0 mm
Diameter	520 mm
Length	600 mm
Components	None, as the customer's requirement
Package	Woden box, Container

Product Description

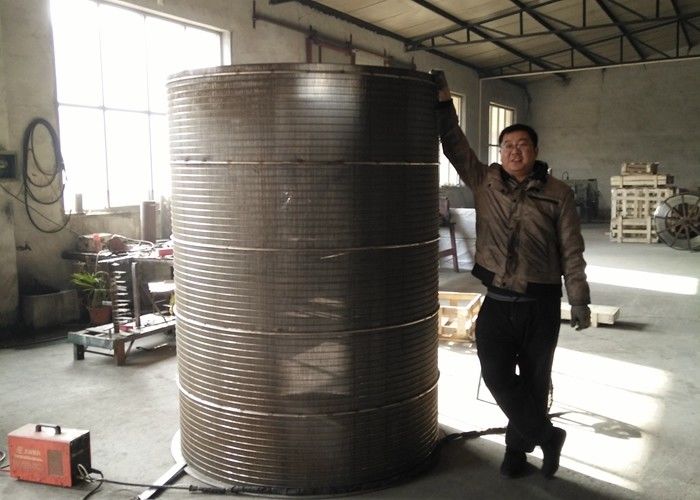

Large Diameter Reverse Screen Cylinder Inside Filter Rotary Screen Drum Stainless Steel

Stainless Steel Back Flush Screen Characteristics:

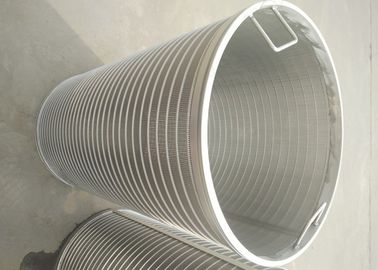

The Screen drum was made by rods and wrapped wires, of which the rods can be V Shaped profile or wedged profile, the wrapped wire is V shaped.
With precise slot size, high filtration accuracy is assured
Firm structure, heat and corrosion resistance, very good mechanical performance
Long life span, safety and reliability, can be used as the filter of various medium.

Stainless Steel Back Flush Screen is made by Johnson screen mesh through reverse welding. The liquid flows from inside to outside. The revolutionary reverse rolled slotted wedge wire screens is extremely rugged and more clog-resistant than conventional strainer elements that use perforated plate or wire mesh screens.

The reverse rolled slotted wedge wire screens provide continuous debris removal from fluid piping systems that demand full time uninterrupted flow and can operate through a wide range of positive operating pressure and solids loading with effective debris removal and back washing across the entire pressure range.

There are two types of the screen cylinder: the inside circle wire (circle gap) and the inside vertical wire (vertical gap). It can be made according to customer's requirements.

Technical Specifications

Material	Stainless steel
Grade	316L
I.D	150-1000 mm, 520 MM
Slot Size	0.1 - 30 mm, 0.75 mm
Components	None
Length	300-3000mm, 700 mm
Filter type	From inside to outside
Wire size	2*3.5 mm
Support rod	3*4.6 mm
Wire shape	V shape

Standard Specifications

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

I.D.: 150 - 1000 MM

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Length: 300mm-3000mm

Filter Type: from inside to outside

Slot type: Inside circle wire and slot, inside vertical wire and slot

Other components: Flange, stiffener, lifting handle, and other type components by request

Wire and Rod Sizes

Wire Width (mm)	1.0	1.2	1.5	2.3	3.0
Wire Height (mm)	2.0	2.2	2.5	3.5	4.6
Rod Width (mm)	2.3	2.3	3.0	3.7	3.3
Rod Height (mm)	2.7	3.5	4.6	5.6	6.3
Round Wire Diameter (mm)	0.25-0.5

Special specification can be made according to your need.

Applications

Food and drink industry beverage and food products
Bright quenching and cutting fluids
Chemical and petroleum industry, plating solutions, oils and distillates, industrial liquids of every kind
Solid liquid separation, livestock manure dehydration
Urban water treatment
Fruit and vegetable dehydration
Water treatment including drinking and photographic use as well river water, sea water
