AISI 304 V Slot Johnson Wire Screen Basket With High Filtration Accuracy

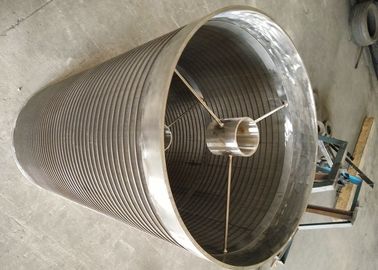

Large Image : AISI 304 V Slot Johnson Wire Screen Basket With High Filtration Accuracy

Product Details:

Place of Origin:	Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO9000
Model Number:	HY0010

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	according to the specifications
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Grade:	304
Slot Size:	1.0 Mm	Diameter:	650 Mm
Length:	1100 Mm	Components:	None, As The Customer's Requirement
Package:	Woden Box,Container
Highlight:	rotating drum screen , rotary sand screen

AISI 304 V Slot Johnson Wire Screen Basket With High Filtration Accuracy

Product Specifications

Attribute	Value
Material	Stainless steel
Grade	304
Slot size	1.0 mm
Diameter	650 mm
Length	1100 mm
Components	None, as the customer's requirement
Package	Woden box, Container

Product Description

AISI 304 V Slot Johnson Wire Screen Basket For Waste Dehydration Treatment

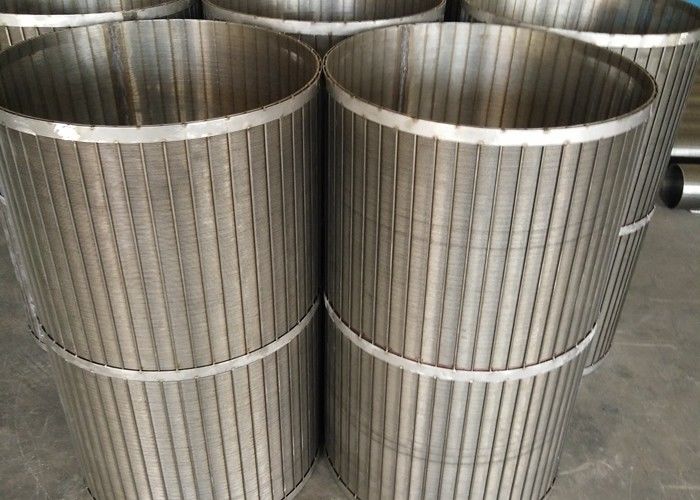

Stainless Steel Back Flush Screen is made by Johnson screen mesh through reverse welding. There are two types of the screen cylinder: the inside circle wire (circle gap) and the inside vertical wire (vertical gap). It can be made according to customer's requirements. The liquid flows from inside to outside.

The revolutionary reverse rolled slotted wedge wire screens is extremely rugged and more clog-resistant than conventional strainer elements that use perforated plate or wire mesh screens. These screens provide continuous debris removal from fluid piping systems that demand full time uninterrupted flow and can operate through a wide range of positive operating pressure and solids loading with effective debris removal and back washing across the entire pressure range.

Product Characteristics

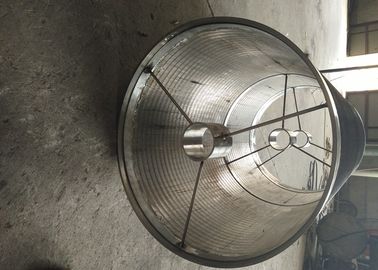

The Screen drum was made by rods and wrapped wires, of which the rods can be V Shaped profile or wedged profile, the wrapped wire is V shaped
With precise slot size, high filtration accuracy is assured
Firm structure, heat and corrosion resistance, very good mechanical performance
Long life span, safety and reliability, can be used as the filter of various medium

Industry Applications

Food and drink industry beverage and food products
Bright quenching and cutting fluids
Chemical and petroleum industry
Solid liquid separation, livestock manure dehydration
Urban water treatment
Fruit and vegetable dehydration
Water treatment including drinking and photographic use as well river water, sea water
Waste dewatering treatment
Used for centrifuge Industry
Plating solutions, oils and distillates, industrial liquids of every kind

Technical Specifications

Material	Stainless steel
Grade	316L
I.D	150-2000 mm, 650 MM
Slot Size	0.1 - 30 mm, 0.75 mm
Components	Flange, handle
Length	300-3000mm, 1100 mm
Filter type	From inside to outside
Wire size	2*3.5 mm
Support rod	3*4.6 mm
Wire shape	V shape

Regular Specifications

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Filter Type: from inside to outside
Slot type: Inside circle wire and slot, inside vertical wire and slot

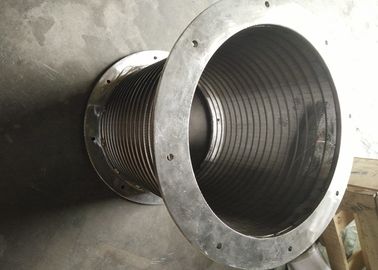

Other components: Flange, stiffener, lifting handle, and other type components by request

Wire and Rod Sizes
