Corrosion Resistant Rotary Screen Drum For Waste Dehydration Treatment

Large Image : Corrosion Resistant Rotary Screen Drum For Waste Dehydration Treatment

Product Details:

Place of Origin:	Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO9000
Model Number:	HY0010

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	according to the specifications
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Grade:	304
Slot Size:	1.0 Mm	Diameter:	650 Mm
Length:	1100 Mm	Components:	None, As The Customer's Requirement
Package:	Woden Box,Container
Highlight:	wire cylinder basket , rotary sand screen

Corrosion Resistant Rotary Screen Drum For Waste Dehydration Treatment

Product Attributes

Attribute	Value
Material	Stainless steel
Grade	304
Slot size	1.0 mm
Diameter	650 mm
Length	1100 mm
Components	None, as the customer's requirement
Package	Woden box, Container

Product Description

AISI 304 V Slot Johnson Wire Screen Basket For Waste Dehydration Treatment

Johnson screen basket is made by Johnson screen mesh through reverse welding. There are two types of the screen cylinder: the inside circle wire (circle gap) and the inside vertical wire (vertical gap). It can be made according to customer's requirements.

The liquid flows from inside to outside. The revolutionary reverse rolled slotted wedge wire screens are extremely rugged and more clog-resistant than conventional strainer elements that use perforated plate or wire mesh screens.

Specifications

Material	Stainless steel
Grade	316L
I.D	150-2000 mm, 650 MM
Slot Size	0.1 - 30 mm, 0.75 mm
Components	Flange, handle
Length	300-3000mm, 1100 mm
Filter type	From inside to outside
Wire size	2*3.5 mm
Support rod	3*4.6 mm
Wire shape	V shape

Regular Specifications

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Filter Type: from inside to outside
Slot type: Inside circle wire and slot, inside vertical wire and slot
Other components: Flange, stiffener, lifting handle, and other type components by request

Wire and Rod Sizes

Wire Width (mm)	1.0, 1.2, 1.5, 2.3, 3.0
Wire Height (mm)	2.0, 2.2, 2.5, 3.5, 4.6
Rod Width (mm)	2.3, 2.3, 3.0, 3.7, 3.3
Rod Height (mm)	2.7, 3.5, 4.6, 5.6, 6.3
Round Wire Diameter	0.25-0.5m

Special specification can be made according to your need.

Characteristics

The Screen drum was made by rods and wrapped wires, of which the rods can be V Shaped profile or wedged profile, the wrapped wire is V shaped
With precise slot size, high filtration accuracy is assured
Firm structure, heat and corrosion resistance, very good mechanical performance
Long life span, safety and reliability, can be used as the filter of various medium

Industry Applications

Food and drink industry beverage and food products, urban water treatment, fruit and vegetable dehydration, water treatment including drinking and photographic use as well river water, sea water, waste dewatering treatment, used for centrifuge Industry, plating solutions, oils and distillates, industrial liquids of every kind, bright quenching and cutting fluids, chemical and petroleum industry, solid liquid separation, livestock manure dehydration.

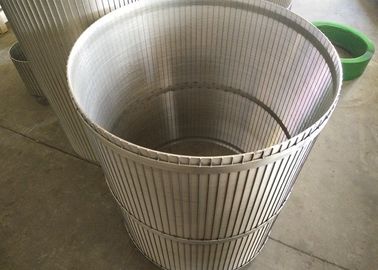

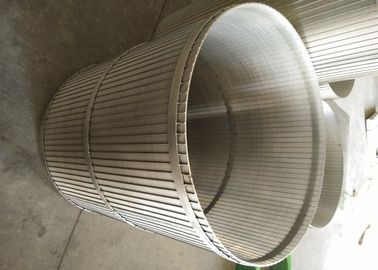

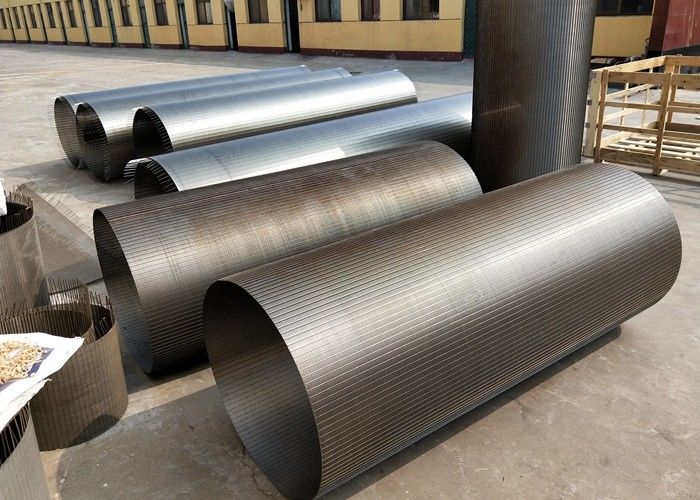

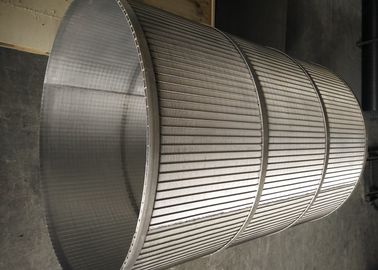

Product Images
