|Slot Size:||1.0 Mm||Diameter:||520 Mm|
|Length:||600 Mm||Components:||None, As The Customer's Requirement|
rotating drum screen,
rotary sand screen
Reverse Johnson Screen Suit To Back Flush Screen Basket Filter Cyllinder Mesh
Stainless Steel Back Flush Screen consist of V shape profile wire and the longitudinal support rods. Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy constriction and good mechanical property.
The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.The drum screen is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. There are two types of the screen, inside circle wire and the inside veritical wire. The slot is circle or vertical too. The type can be made by the customer's requirement to suit to your filter function better.
|I.D||150-1000 mm, 520 MM|
|Slot Size||0.1 - 30 mm, 0.75 mm|
|Length||300-3000mm, 700 mm,|
|Filter type||From inside to outside|
|Wire size||2*3.5 mm|
|Support rod||3*4.6 mm|
|Wire shape||V shape|
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Filter Type: from inside to outside.
Slot type: Inside circle wire and slot. inside vertical wire and slot.
Other components : Flange, stiffener, lifting handle, and other type components by request.
|SIZES OF THE WIRE AND ROD|
Special specification can be made according to your need.

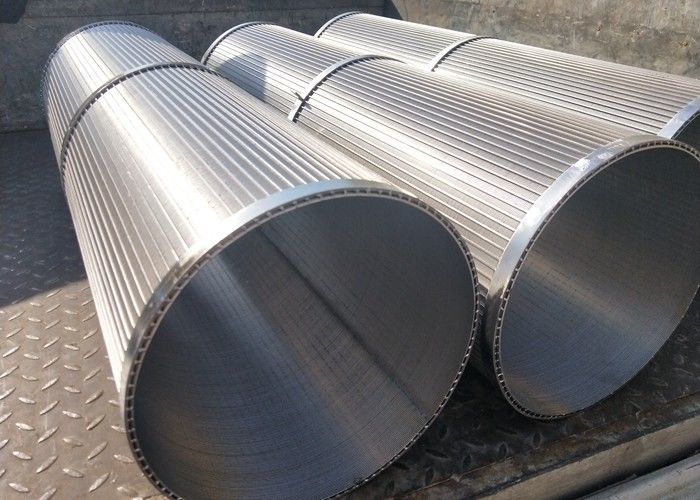

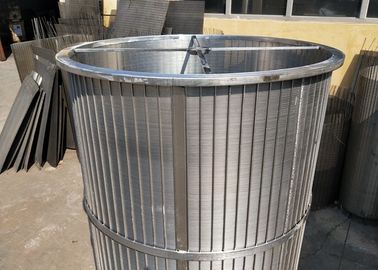

The screen basket cylinder was made by rods and wrapped wires, of which the rods can be V Shaped profile or wedged profile, the wrapped wire is V shape, so the inside gap is smaller than outside. The filter inside and the back flush outside.
The revolutionary reverse rolled slotted wedge wire screens is extremely rugged and more clog-resistant than conventional strainer elements that use perforated plate or wire mesh screens.The reverse rolled slotted wedge wire screens provide continuous debris removal from fluid piping systems that demand full time uninterrupted flow and can operate through a wide range of positive operating pressure and solids loading with effective debris removal and back washing across the entire pressure range.
* water treatment including drinking and photographic use as well river water, sea water,
* Food and drink industry beverage and food products,
* Bright quenching and cutting fluids,
* Chemical and petroleum industry, plating solutions, oils and distillates, industrial liquids of every kind.
