|Slot Size:||1.0 Mm||Diameter:||520 Mm|
|Length:||600 Mm||Components:||None, As The Customer's Requirement|
rotating drum screen,
wire cylinder basket

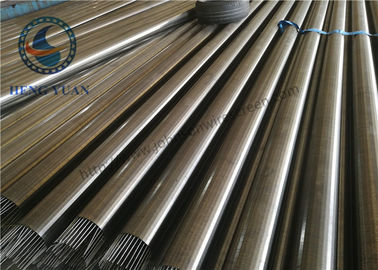

Cone Slot Screen Pipe Stainless Steel 316L Inside Filter Backwasher
The wire wound tube is welded by a V-shaped wire and a support strip, and the V-shaped wire is an inverted triangle isosceles triangle, and the support bar may be a V-shaped wire or a square wire, or a round wire. The V-shaped wire is wound and welded on the outside of the pipe, and a gap is formed between each V-shaped wire. The size of the gap is determined by the customer, and the gap is continuous, which can increase the filtering area and play a good role in filtering.
|I.D||150-1000 mm, 520 MM|
|Slot Size||0.1 - 30 mm, 0.75 mm|
|Length||300-3000mm, 700 mm,|
|Filter type||From inside to outside|
|Wire size||1*2 mm|
|Support rod||2*3 mm|
|Wire shape||V shape|
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Filter Type: from inside to outside.
Slot type: Inside circle wire and slot. inside vertical wire and slot.
Other components : Flange, stiffener, lifting handle, and other type components by request.
|SIZES OF THE WIRE AND ROD|
Special specification can be made according to your need.
It is used for filtering machine parts and is used for internal filtration. It can be used for filtration of liquid medicine, chemical liquid, water, oil and other filtering liquids.
