Product Details:
Payment & Shipping Terms:
|
| Name: | Rotary Drum Screen | Technique: | Electric Galvanized Welded/all Welded |
|---|---|---|---|
| Size: | 80cm Height | Wire: | 1.5*2mm;2*3mm |
| Application: | Liquid/solid Filtration | ||
| High Light: | wire cylinder basket,rotary sand screen |
||

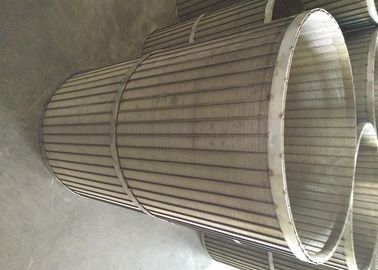

High quality Roary Drum Screen /Wedge Wire Cylinder Screen/Back-wash Screen Filter
The wire-wound screen is also called a wire-wound filter. It is made of V-shaped wire (surface wire) and support wire.
The surface wire is connected with the support rod by electric welding.
The strict continuous integrity makes the full-welded wire.
The screen has the minimum amount of high-pressure resistance.
The smooth surface of the wire-wound screen is a filtering surface, and the slit is strip-shaped, belonging to the surface filtration form. Filter elements for various types of automatic filters (such as automatic backwashing, blade self-cleaning, scraper self-cleaning, and suction-type self-cleaning filters) are widely used for fluid filtration in various industries.
The main use of wire-wound screen
1 Dewatering machine filter
2 filter, such as diatomaceous earth filter
3 Centrifugal separator parts
4 vibrating screen machine
5 solid-liquid separation device coarse filter
6 River water and seawater water treatment equipment.
7 Various catalysts such as activated carbon and plasma exchange devices.
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| Length Range | Up to 4000mm | ||||||
| OD Range | Up to 1200mm | ||||||
| Slot Range | 20 micron to 3000 microns (Tolerance:+-5 micron) | ||||||
| Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5x2.5 | 2x3 | 2x4 | 3x5 |
| Support Rod |
1.5x2.5 2x3 |
1.5x2.5 2x3 |
1.5*2.5 2x3 |
2x3 | 3*5 | 3x5 |
3x5 4*6 5*8 |
|
Frame |
Flange | ||||||
| Note | Customized according to the requirement | ||||||
Our factory Hengyuan hardware netting industry product co., Ltd located in Anping county, Hebei Province, China.
Our mainly products are : stainless steel vee sharped wire / wrap wire , Johnson screen , water well screen / rod based wire wrapped screen , wedge wire screen pipe , reverse wedge wire screen , screen nozzle / water and gas strainer , sieve plate , slot mesh , ARC screen , header and hub laterals & hub radial laterals etc.
Pls feel free to contact me if you have any questions.
Hope we can work together soon.
