High Filtration Accuracy Rotary Screen Drum , Stainless Steel Back Flush Screen

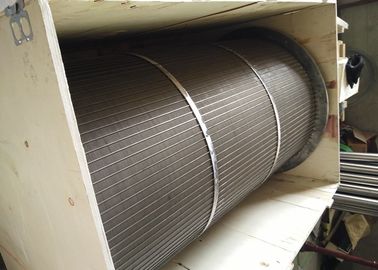

Large Image : High Filtration Accuracy Rotary Screen Drum , Stainless Steel Back Flush Screen

Product Details:

Place of Origin:	Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO9000
Model Number:	HY0010

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	according to the specifications
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Grade:	304
Slot Size:	1.0 Mm	Diameter:	520 Mm
Length:	600 Mm	Components:	None, As The Customer's Requirement
Package:	Woden Box,Container
Highlight:	wire cylinder basket , rotary sand screen

High Filtration Accuracy Rotary Screen Drum, Stainless Steel Back Flush Screen

Product Attributes

Attribute	Value
Material	Stainless steel
Grade	304
Slot size	1.0 mm
Diameter	520 mm
Length	600 mm
Components	None, as the customer's requirement
Package	Woden box, Container

Product Description

Revers V Wedge Wire Johnson Screen Basket Stainless Steel Back Flush

Stainless Steel Back Flush Screen is made by Johnson screen mesh through reverse welding. From inside to outside (FITO): Whereas, the liquid flow from inside to outside. It is with v-shaped cross-section of the stainless steel wire welded on framework, precision filter slot formed between every two adjacent wrap wire, facilitate the back flush filter residue can be ruled out smoothly, to achieve continuous water supply function.

Specification

Material	Stainless steel
Grade	316L
I.D	150-1000 mm, 400 MM
Slot Size	0.1 - 30 mm, 0.75 mm
Components	None
Length	300-3000mm, 500 mm
Filter type	From inside to outside
Wire size	2*3.5 mm
Support rod	3*4.6 mm
Wire shape	V shape

Regular Specifications

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Filter Type: from inside to outside
Slot type: Inside circle wire and slot. inside vertical wire and slot
Other components: Flange, stiffener, lifting handle, and other type components by request

Sizes of the Wire and Rod

Wire Width(mm)	1.0 \| 1.2 \| 1.5 \| 2.3 \| 3.0
Wire Height(mm)	2.0 \| 2.2 \| 2.5 \| 3.5 \| 4.6
Rod Width(mm)	2.3 \| 2.3 \| 3.0 \| 3.7 \| 3.3 \| Round wire Diameter
Rod Height(mm)	2.7 \| 3.5 \| 4.6 \| 5.6 \| 6.3 \| 0.25-0.5m

Special specification can be made according to your need.

Benefits

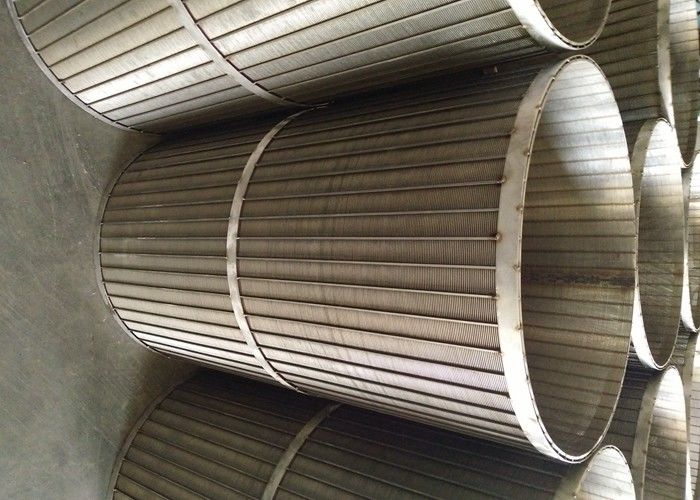

The Screen drum was made by rods and wrapped wires, of which the rods can be V Shaped profile or wedged profile, the wrapped wire is V shaped
With precise slot size, high filtration accuracy is assured
Firm structure, heat and corrosion resistance, very good mechanical performance
Long life span, safety and reliability, can be used as the filter of various medium
