Payment & Shipping Terms:
|Slot Size:||1.0 Mm||Diameter:||520 Mm|
|Length:||600 Mm||Components:||None, As The Customer's Requirement|
rotating drum screen,
rotary sand screen

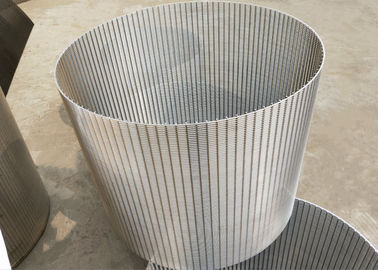

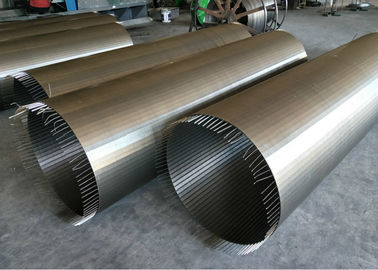

Professional Rotary Reverse Bake Flush Johnson Slot Screen Drum
Professional Rotary Reverse Bake Flush Johnson Slot Screen Drum is made by Johnson screen mesh through reverse welding.
From inside to outside (FITO):
Whereas,the liquid flow from inside to outside.It is with v-shaped cross-section of the stainless steel wire welded on framework, precision filter slot formed between every two adjacent wrap wire, facilitate the back flush filter residue can be ruled out smoothly, to achieve continuous water supply function.
The key point of producing the first-class seiving mesh is the welding process. And based on that, in 2001, we created our automatic welding equipment, which was testified by the practice, the seiving mesh processed have the highest screening efficiency, the strongest seismic tensile ability, need the least maintenance and get the longest life span.
|I.D||150-1000 mm, 400 MM|
|Slot Size||0.1 - 30 mm, 0.75 mm|
|Length||300-3000mm, 500 mm,|
|Filter type||From inside to outside|
|Wire size||2*3.5 mm|
|Support rod||3*4.6 mm|
|Wire shape||V shape|
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Filter Type: from inside to outside.
Slot type: Inside circle wire and slot. inside vertical wire and slot.
Other components : Flange, stiffener, lifting handle, and other type components by request.
|SIZES OF THE WIRE AND ROD|
Special specification can be made according to your need.
Not easy to jam
the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.
The CNC machine tools strictly control the gap between the wire, so that the gap is even.
Strong corrosion resistance
Stainless steel have the high corrosion resistance
Easy to backwash, clean without dead Angle.
Filter from inside to outside , and the outside slot is bigger than inside slot, so it is easy to bakc flush.
Built-in scraper, brush, suction first class cleaning device.
● Trommel screens with internal feed
● Systems with an internal rotor or screw
● Dewatering systems
● Automatic filters
