Payment & Shipping Terms:
|Type:||Full Welded||Structure:||Vee-shaped Wrap Wire And Round Support Rod|
|Slot:||0.5,0.75,1.0mm In Usual, We Can Also Make Any Other Size For You||Wire:||2*3.5,3*4.6,3.2*6mm In Usual,We Can Design It For You|
water wire screen,
slotted screen pipe

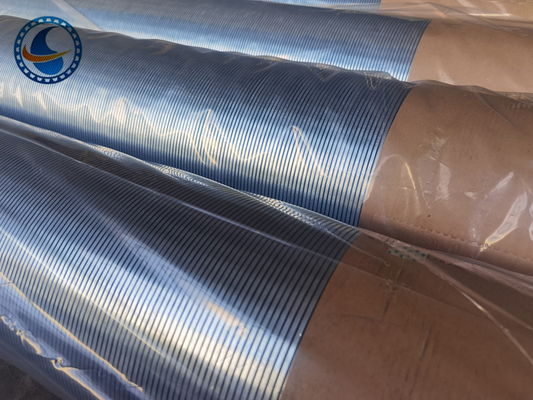

Water Well Stainless Steel Wedge Wire Screen High Temperature Resistant
Coutinuous Slot Wire Wrap Screen also be named water well screen, wound screen,well screen filter tube.We make wire wrap screen for more than 15 years, and export to many countries.
Material: 304, 302, 304L, 316, 316L stainless steel wire, or galvanized steel wire .
Diameter: 3", 4", 6",8",10" 12" 14" 16"

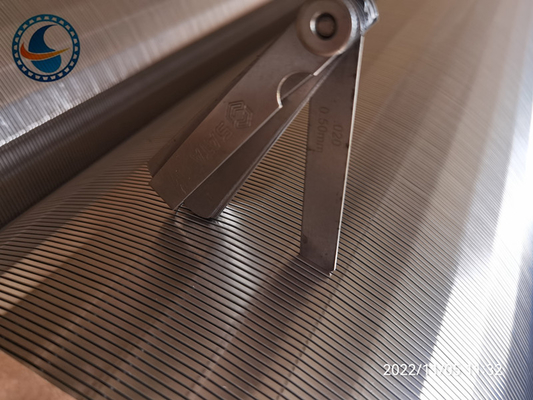

Slot: 0.1mm-45mm (0.5,0.75,1.0,1.5mm in usual)
End connection: by welding or by male/female threaded coupling.
Standard length: 2.9m and 5.8m, (upto 6meters)
Filter type: From outside to inside.
Coutinuous Slot Wrap Screen Wire Size:
Low Carbon Steel,Q195 Q235
Stainless Steel 201,304,304L,316L
|Profile Wire (mm):||Width : 2.0 2.2 3.0 3.2 4.0|
|Height : 3.5 4.6 5.0 6.0 7.0|
|Support Rod (mm):||Round wire:ø3.0 - 6.0mm|
|Slot Size (mm):||
0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm
0.05-- 10mm, also can be customized as your request.
We can also make any other sizes according to your drawing.
· Water Well
· Waste Water Treatment
. Water supply systems
· Coal & Mine
· Food Processors & Beverage Screens
· Environmental protection
· Refining & Petrochemical
· Architecture & Construction
Function of Product:
1. Solid structure, high temperature resistant, corrosion resistant, long service life, safety and reliability.
2. The end connection can be made parallel connection, screwed joint, taper joint and trapezoidal joint
3. The petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filter.

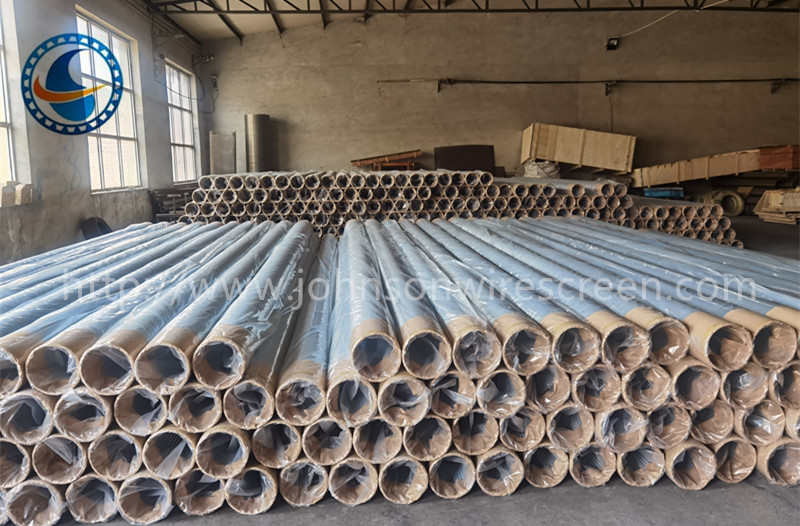

Single with bubble bag and then in wooden case(fumigation certificate).
Each case is clearly marked with:
Name & identification mark of manufacturer-Hengyuan Brand
Date of manufacture
Safe heating & application temperature
Why choose us ?
1) World Class Quality:
Hengyuan provide our clients with high quality water well screens and related products. Hengyuan had passed ISO9001:2008 quality control system.
2)Third party inspection:
The productive process of Hengyuan screen is controlled by third party test company such as BV,SGS,etc. or client's representative.
3) Non Standard Screens:
Hengyuan can supply customer designed and engineered screens according to our clients’ requirements.
4) Quick Delivery:
Hengyuan can prepare stock for our regular clients to meet clients' requirement at any time.
5) Lower Maintenance of the Well:
The water can pass freely around coarse particles and enters the well. So low maintenance costs with minimal encrustation or build-up of scale.
6) Environmentally safe:
Hengyuan water well screen has signed the file to protect the environment with our local Environmental Protection Administration.
