High Filtration Precision Johnson Wire Wrapped Screen For Mining / Food Industry

High Filtration Precision Johnson Wire Wrapped Screen For Mining / Food Industry
High Filtration Precision Johnson Wire Wrapped Screen For Mining / Food Industry High Filtration Precision Johnson Wire Wrapped Screen For Mining / Food Industry

Large Image :  High Filtration Precision Johnson Wire Wrapped Screen For Mining / Food Industry

Product Details:
Place of Origin: Anping, Hebei, China
Brand Name: Hengyuan
Certification: ISO, CIQ,CE, SGS
Model Number: Diameter: 25mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Discussible price
Packaging Details: Wooden boxes
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 150 meters per day
Detailed Product Description
Slot: 0.25mm In Usual Material: Stainless Steel 304 Or 316L, Or Other Material As Your Request
Length: Upto 4 Meters Wrap Wire: 1.5*2mm In Usual
Support Rod: 2*3mm In Uaual End Connection: Welded Rings, Male/female Threaded, Flange Or Other
High Light:

water well sand screen

,

oil well screen

High Filtration Precision Wire Wrapped Screen For Mining / Food Industry





Hengyuan Wire wrap screen also be named :



Vee-Wire screen pipe,Continuous slot Vee-wire screen tube,Wire wrapped screen,Wire wound screen,water filter.



Related products :



v wire water well screens , wire wrapped screens pipe , Johnson Screen , welded wedge wire screen , reversed slot screen , continuous slot pre-pack , water filter , screen cylinders , stainless steel slot tube , reverse rolled screen , strainer pipe , continuous slot wire wrap well screens , pipe base well screen , ribbed-type wire wrapped screen , stainless steel or low carbon galvanized or mild steel wire screen , wire wrapped liner , woven wedge wire screen , slot wire screen tube , well screen , strainer screens , well point screens , oil screen tube , etc



Wire Wrap Screen is made up of :



Vee-shaped wrapped wire and round rod in each intersection welded together.Accurate slot and high filtration precision.



Wire Wrap Screen Parameter selection table :



   Outside Diameter

        (mm)

      Length

     (mm)

      Slot

   (mm)

   End connection

29,38,42,57,63,76,89,108,150,

168,320,600,900,985,1000

1000,2000,3000 0.05,0.1,0.25,0.5,1.0

Welded rings, male/female threaded coupling, flange, closed up etc.

Explanation

Besides above of the specification screen pipe, we also can make the screen according to the customer’s request.

Diameter from ¢ 29mm- ¢ 1200mm, the length upto 4000mm.



Wedge Wire Johnson Screen Filter
Specification (Profile wire): Width(mm): 1.0 1.2 1.5 2.0 2.2 3.0 3.2
Height(mm): 2.0 2.5 3.5 4.6 5.0 6.0
Specification (support rods): Width(mm): 2.0 3.0
Height(mm): 3.0 4.6 5.0 6.0 7.0
Round: From 2.50mm to 6.0mm
Note: other wires and rods available upon request
Slot size 0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request.
Material: Stainless steel 304, 304L, 316L ,321 etc.)
Length Upto 4 meters
Diameter 29-1200mm
Screen ends Plain beveled ends, male/female threaded, flange, close up.
Other sizes available on request.

Advantage



Reduce energy consumption and increase water flow.

Reduce erosion of entry surfaces and increase well life.

Allow a uniform and efficient well development.

Reduce significantly potential pump damage and subsequent maintenance costs



wire wrap screen introduction:

1. Also be named Johnson screen,wire mesh screen, vee slot screen, wedge wire mesh, filter element

2. Material of stainless steel 304,316,

3. High quality, anti-corrosiveness, high strength,min slot is 25 micro meter

4. Application in water treatment,oilfield,mining,food industry,chemical industry,papermaking industry,decoration.

5. The quality is now almost the best in China, most companies just use our products as the imported goods.

6. Main customers including companies of the world's top 500.

7. Precision and roundness are fairly well.


Other applications of wire wrap screen:



1. Separating



2. Sizing



3. Straining



4. De-watering



5. Filtering



6. Drying



7. Water intake



8. Media retention

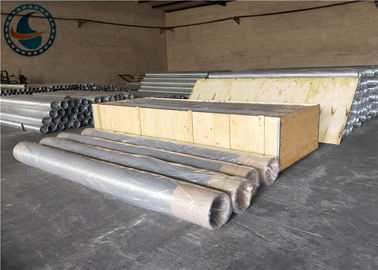

High Filtration Precision Johnson Wire Wrapped Screen For Mining / Food Industry 0
