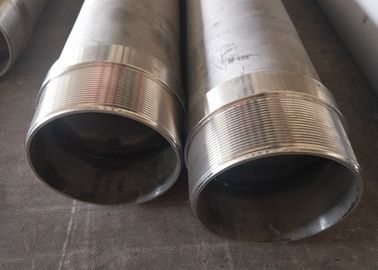

Economical Johnson Stainless Steel Corrosion Wedge Wire Screen Pipe

Economical Johnson Stainless Steel Corrosion Wedge Wire Screen Pipe
Economical Johnson Stainless Steel Corrosion Wedge Wire Screen Pipe Economical Johnson Stainless Steel Corrosion Wedge Wire Screen Pipe

Large Image :  Economical Johnson Stainless Steel Corrosion Wedge Wire Screen Pipe

Product Details:
Place of Origin: Anping, Hebei, China
Brand Name: Heng Yuan
Certification: ISO,SGS,CIQ
Model Number: 6-5/8" 8-5/8" 10-3/4"
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Moister-Barrier with each piece,128 pcs per 20 ft container
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Week
Detailed Product Description
Material: Stainless Steel Grade: 201, 205, 304, 316L, 321 Etc
Slot Size: 0.5mm, 0.75mm, 1.0 Mm, 1.5mm Etc Diameter: 2 " 3 " 4 " 6 " 8 " 10 " 12 " 14 "etc
Length: 2900mm OR 5800mm To Fit Container End Connection: Welded Rings
Package: Woden Box Or Plastic Film In Container
High Light:

johnson screen mesh

,

johnson screen pipe

Economical Johnson Stainless Steel Corrosion Wedge Wire Screen Pipe



6-5/8" 40 Slot High Pressure Johnson Wire Screen For Coal / Mine Easy Installation





Wound Screen Pipe Product Description:



Hengyuan Wound Screen Pipe is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.

.

Wound Screen Pipe Specification:



Material Stainless steel
Grade 201, 205, 304, 316L, 321 etc
O.D 219 mm
Size 2-1/2", 4-1/2", 6-5/8", 8-5/8", 10-3/4", 12-3/4", 14" etc
Slot size 0.5mm, 0.63mm, 0.75mm, 1.0 mm in usual
Length 2.9m OR 5.8m to fit container
End connection Welded rings
Wire size 118 # (3*4.6mm), 3*5mm or 3*6mm
Support rod Round wire: ø3.8mm,4.0mm, 4.2mm, 4.5mm, 5.0mm
Wire shape V shape wire



Wound Screen Pipe Regular Specifications:



Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

O.D.: 4, 6, 8, 10, 12 inch and as request.

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Length: 50mm-6000mm

End Connection: welded rings or thread couplings ( male / female )

Specification of the wrap wire: 2*3.5mm, 2.2*3.5mm, 3*4.6mm, 3*5mm, 3*6mm.

Specification of the rod:2.8mm, 3.0mm, 3.8mm, 4.0mm, 4.2mm, 4.5mm, 5.0mm and so on.



Special specification can be made according to your need!





Wound Screen Pipe Application of johnson screen:



- Separating;

- Sizing;

- Straining;

- De-watering;

- Filtering;

- Drying;

- Water intake;

- Media retention





Wound Screen Pipe Characteristics of johnson screen:



- More open area

- Precise openings

- Maximum design flexibility

- Stronger and more durable, economical

- Easier installation and long-term operating etc



Economical Johnson Stainless Steel Corrosion Wedge Wire Screen Pipe 0Economical Johnson Stainless Steel Corrosion Wedge Wire Screen Pipe 1
