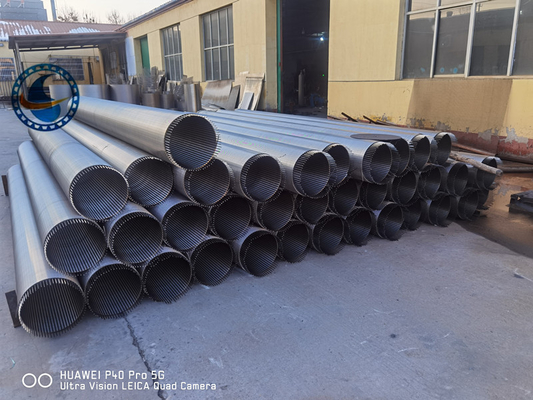

Anti Corrosion SS 304 Johnson Wire Screen

304 Stainless Steel Johnson Wire Screen ,Wrap Wire Screen Tube

Materials : carbon steel and stainless steel (302 ,304 ,304 L ,316 ,316L etc) .

Characteristics :

The welded stainless steel water well screen is made up of rods and warp .

The rod can be round wire , triangular wire or trapezoid wire .

The warp is triangular wire (V-shaped wire) .

Water well screens have a structure and high open area , as well as accurate slot dimension .

At the same time , water well screen have heat-resisting , anti-corrosive , good machine capability , last long , safety and reliability and so on characteristics .

It can be used in many kinds of medium filtering .

Uses :

The strainer is a kind of filtered water tubing with the perforation . it can use with the deep well pump , dive the water pump , also may use in the water-treating equipment , the environmental protection , the sea water transforms into the industrial water and life use water desalination treatment , running water treatment , water softening treatment , the petroleum industry : The petroleum product terminal filters and the chemical acid , the alkali liquid filters , the ethyl alcohol and so on the organic solution recycling filters.

Features of Product

1. Screens with high open area are more suitable for the construction of high-quality water wells , oil wells and gas wells.

2. Low cost operation
Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down , thus to save energy consumption.

3. Reduce the abrasion of the pump
Under the same condition , high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus , which will avoid sand’s entering into screen because of high pressure , thus reduce the abrasion of the pump .

4. Extend the life span of wells
Comparatively , groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen . The slow water flow shall extend the life span of wells .

Large Diameter Stainless Steel 304 Wellscreen, Fitted with Well Casing and thread protectors.
Construction
Slot = .020, Material = 304 SS
Screen length in feet = 5.8M
Top Fitting = Male thread, NPI,NPT
Bottom Fitting = Female thread, NPI,NPT
Screen Run Length = 237.99 +/- 0.250
Screen Cut Length = 237.24 +/- 0.250


If you have any enquires please feel free to contact us !

Our factory Hengyuan hardware netting industry product co.,ltd located in Anping country , Hebei Province , China.

Our mainly products are : stainless steel vee sharped wire / wrap wire,johnson screeen , water well screen / rod based wire wrapped screen , wedge wire screen pipe , reverse wedge wire screen,screen nozzle / water and gas strainer ,sieve plate ,slot mesh ,ARC screen ,header and hub laterals & hub radial laterals , pipe base , crimped wire mesh / stainless steel wire mesh / perforated wire mesh etc .
