High Precision Rotary Screen Drum FIlter V Wire Wrap Screen 316 Grade

High Precision Rotary Screen Drum FIlter V Wire Wrap Screen 316 Grade
High Precision Rotary Screen Drum FIlter V Wire Wrap Screen 316 Grade High Precision Rotary Screen Drum FIlter V Wire Wrap Screen 316 Grade

Large Image :  High Precision Rotary Screen Drum FIlter V Wire Wrap Screen 316 Grade

Product Details:

Place of Origin: Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: HY0010

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: according to the specifications
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Material: Stainless Steel Grade: 304
Slot Size: 1.0 Mm Diameter: 520 Mm
Length: 600 Mm Components: None, As The Customer's Requirement
Package: Woden Box,Container
High Light:

rotating drum screen

,

wire cylinder basket

Filter From Inside To Outside Drum FIlter V Wire Wrap Screen 316 Grade



Product Description:

Stainless Steel Back Flush Screen  consist of V shape profile wire and the longitudinal support rods. Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy constriction and good mechanical property.
The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.The drum screen is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. There are two types of the screen, inside circle wire and the inside veritical wire. The slot is circle or vertical too. The type can be made by the customer's requirement to suit to your filter function better.
Specification:


Material Stainless steel
Grade 304
 I.D 150-1000 mm, 520 MM
Slot Size 0.1 - 30 mm,  0.75 mm
Components None
Length 300-3000mm, 700 mm,
Filter type  From inside to outside
Wire size 2*3.5 mm
Support rod 3*4.6 mm
Wire shape V shape


Regular Specifications:


SIZES OF THE WIRE AND ROD
Wire
Width(mm) 1.0 1.2 1.5 2.3 3.0
Height(mm) 2.0 2.2 2.5 3.5 4.6
Rod           Round wire
Width(mm) 2.3 2.3 3.0 3.7 3.3 Diameter
Height(mm) 2.7 3.5 4.6 5.6 6.3 0.25-0.5m


High Precision Rotary Screen Drum FIlter V Wire Wrap Screen 316 Grade 0


Special specification can be made according to your need.

Characteristic:

The screen basket cylinder was made by rods and wrapped wires, of which the rods can be V Shaped profile or wedged profile, the wrapped wire is V shape, so the inside gap is smaller than outside. The filter inside and the back flush outside.
The revolutionary reverse rolled slotted wedge wire screens is extremely rugged and more clog-resistant than conventional strainer elements that use perforated plate or wire mesh screens.The reverse rolled slotted wedge wire screens provide continuous debris removal from fluid piping systems that demand full time uninterrupted flow and can operate through a wide range of positive operating pressure and solids loading with effective debris removal and back washing across the entire pressure range.

Industry:

* water treatment including drinking and photographic use as well river water, sea water,
* Food and drink industry beverage and food products,
* Bright quenching and cutting fluids,
* Chemical and petroleum industry, plating solutions, oils and distillates, industrial liquids of every kind.


OEM service:

Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.

The product adopts continuous resistance welding technology. The screen diameter can be from 30mm to 1270mm, and the gap can be as small as 0.02-0.06mm
Customers can choose different filter gaps and diameters according to different filter media and particle sizes of medium. Screen wire is made of quality stainless steel (205,304,316,316l, etc.) or carbon steel wedge wire (trapezoid wire, v-shaped wire). Support bar is also made of wedge wire or circular wire.
Moreover, the customer can choose the welding method of the screen according to the filtering direction (external or internal filtering) : positive or reverse winding, pointed out or pointed in.
Customers can also tell us your specific use and specific requirements, we can also choose the configuration for you to fit your product specifications and sizes to meet your actual application

Pictures:

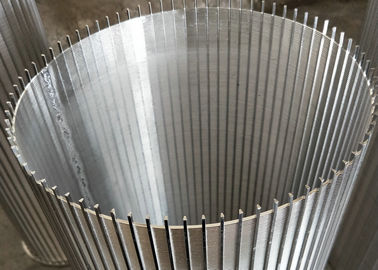

High Precision Rotary Screen Drum FIlter V Wire Wrap Screen 316 Grade 1

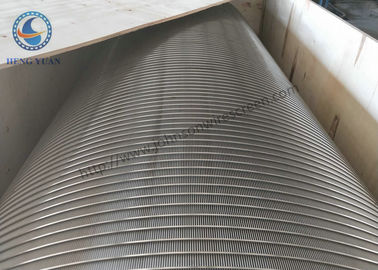

 High Precision Rotary Screen Drum FIlter V Wire Wrap Screen 316 Grade 2High Precision Rotary Screen Drum FIlter V Wire Wrap Screen 316 Grade 3
Package:

 High Precision Rotary Screen Drum FIlter V Wire Wrap Screen 316 Grade 4
