Product Details:
Payment & Shipping Terms:
|
| Name: | Stainless Steel Water Filter Nozzle | Material: | Stainless Steel 304,321,316L,titanium Steel Ettc. |
|---|---|---|---|
| Diameter: | 45mm | Length: | 95mm |
| Height: | 45mm | Medium Diameter: | 24mm |
| Technique: | Wrap Wirre Welding | Unit: | Rubber Gasket, Steel Gasket And Nut |
| High Light: | wedge wire strainer,water screen nozzle |
||

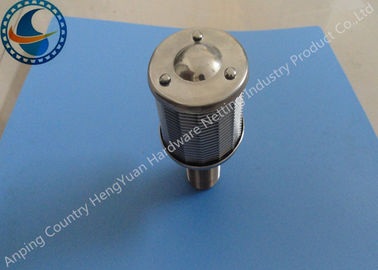

Stainless Steel Water Filter Nozzle ,Screen Nozzle ,Water Strainer
Nozzles are installed in a vessel orifice plate. Typical configuration has a stem projecting through each orifice and secured with a nut and washer. Screens are manufactured to suit customer requirements and are not restricted in size by length or diameter. Typical screens are fabricated with a blind cap on one end and washer fixed with a threaded stem on the other end.
Specification
| No. |
Type |
Ton |
Slot Opening |
Size |
0.2-0.25mm slot opening Area of through-flow mm2 (reference) | |||
| D | L1 | L | M | |||||
| 1 | TYS45-1-C | 0.5 | 0.2-0.5 | 45 | 45 | 95 | 24 | 550-690 |
| 2 | TYS53-2-B | 1 | 0.2-0.5 | 53 | 45 | 100 | 24 | 680-710 |
| 3 | TYS53-2-C | 1.5 | 0.2-0.5 | 53 | 50 | 110 | 32 | 800-920 |
| 4 | TYS57-3-B | 2 | 0.2-0.5 | 57 | 45 | 110 | 32 | 660-790 |
| 5 | TYS70-4-B | 3 | 0.2-0.5 | 70 | 55 | 120 | 32 | 905-1100 |
Our factory Hengyuan hardware netting industry product co.,ltd located in Anping country ,Hebei Province,China.
Our mainly products are :stainless steel vee sharped wire /wrap wire,johnson screeen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen,header and hub laterals &hub radial laterals,pipe base ,crimped wire mesh/stainless steel wire mesh/perforated wire mesh etc.
