Product Details:
Payment & Shipping Terms:
|
| Features: | Non-clogging | Name: | Water Wire Screen |
|---|---|---|---|
| Material: | Non-Magnetic Stainless Steel | Length: | 10 Foot (3048mm) |
| Diameter: | 10-3/4" (273mm) | Technique: | Point Welding |
| Wrap Wire: | 3*5mm | Support Rod: | ø4.8mm Round Wire |
| High Light: | johnson screen pipe,sand control screens |
||

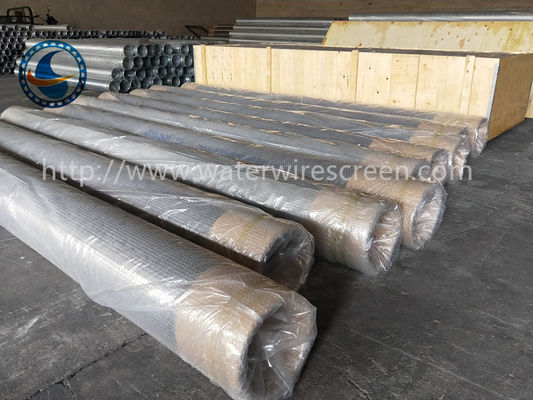

10-3/4" Diameter Non-Magnetic Stainless Steel Water Wire Screen
Water Wire Screen Product introduction:
Water Wire screen is also be named Johnson screen, Wound screen, Wire wrapped screen, Wedge wire screen pipe, Slotted screen.
It is widely used throughout the world for water, oil, and gas wells, and is the dominant screen type used in the water well industry.
Water Well Screen is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods.
The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.
Slot opening for continuous-slot screens are manufactured by spacing successive turns of the outer wire to produce the desired slot size.
All slots should be clean and free of burrs and cuttings.
Each slot opening between adjacent wires is V-shaped, from the special shape of wire used to form the screen surface.
Water Well Screen Parameter selection table:
| SIZE (Inch) |
O.D (mm) |
SLOT (Inch) |
LENGTH (M) |
Collapse Strength (PSI) |
Tensile Weight (ton) |
Wire size (mm) |
Support RODS (mm) |
| 4-1/2 | 114.3 | 0.040 | 3 | 395 | 6 | 2.2*3.5 | 3.8mm/22 |
| 4-1/2 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.5 | 3.8mm/22 |
| 6-5/8 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
| 8-5/8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*4.6 | 3.8mm/48 |
| 8-5/8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*4.6 | 3.8mm/48 |
| 8-5/8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 10-3/4 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8mm/55 |
| 10-3/4 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8mm/55 |
| 10-3/4 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 |
3.8mm/55 |
Water Well Screen Sizes:
Diameter:2-1/2", 3", 4-1/2", 6-5/8", 8-5/8", 10-3/4", 12-3/4", 14", 16"
Open area: up to 80%.
Material:Low Carbon ,Low Carbon Galvanized steel (LCG),Stainless Steel( 304,etc.), 904L etc.
Length: 2.9m or 5.8m to fit container, up to 6 meters.
Slot:0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm in usual, also can be others.
End Connection:Plain beveled ends for butt welding, male/female threaded,Flange, Closed Up etc.
Other materials available upon request.
Wate Wire Screen provide a unique combination of the most important features required for maximum screening efficiency.
The product is custom designed to suit the specific requirements of the customer and to enable a relatively low cost and high performance solution for the screening application.
The high open area of the Wedge Wire screen provides excellent capacity.
Wedge Wire screen offers continuous slot openings that widen inwardly so that particles tend to pass through the screen.
.
If you have any enquires please feel free to contact us !
Our factory Hengyuan hardware netting industry product co.,ltd located in Anping country ,Hebei Province,China.
Our mainly products are :stainless steel vee sharped wire /wrap wire,johnson screeen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen etc.
