Product Details:
Payment & Shipping Terms:
|
| Name: | 10 " Welding Water Well Screen | Material: | Stainless Steel Or Low Carbon Steel |
|---|---|---|---|
| Length: | 2.9m ,5.8m Etc | Diameter: | 4-1/2", 6-5/8",8-5/8", 10-3/4", 12",14",16" |
| Technique: | Point Welding | Fetures: | Non-clogging |
| Application: | Filteration | Package: | Wooden Boxes,container |
| High Light: | water well screen,sand control screens |
||
Customized 30 Slot Well Screen ,Stainless Steel Wound Screen Long Service Life

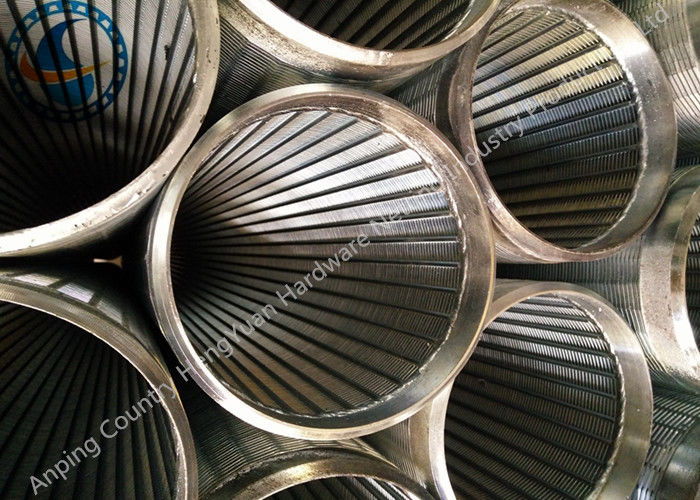

Well Screen ,Stainless Wound Screen is manufactured by a v or wedge shaped wire around an internal array of longitudinal support rods.Each intersection point of these wires is fusion welded.
The Vee or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening,hence the screen allows water (oil) to enter your well freely in ample quantities,while at the same time keeps the majority of sand and gravel out of the well.
30 Slot Welding Water Well Screen ,Wire Wound Screen Water Screen is popularly used in making of water well screen. Stainless steel gravel pack screen pipe is made up of supporting rods and wire screening strips. The supporting rod can be round wire, triangular wire or trapezoid wire. The screening filter is made of triangular wire (V-shaped wire).
|
SIZE |
O.D |
SLOT |
LENGTH |
COLLAPSE |
TENSILE WEIGHT |
WRAP WIRE THICK*HEIGHT |
RODS |
|
4-1/2 |
117 |
0.040 |
3 |
395 |
6 |
2.2*3.5 |
3.8MM/22 |
|
4-1/2 |
114.3 |
0.040 |
3 |
395 |
6 |
2.2*3.5 |
3.8MM/22 |
|
6-5/8 |
168.3 |
0.040 |
3 |
252 |
8 |
2.2*3.5 |
3.8MM/32 |
|
8-5/8 |
219.1 |
0.010 |
3 |
399 |
10.5 |
3.0*4.6 |
3.8MM/48 |
|
8-5/8 |
219.1 |
0.020 |
3 |
370 |
10.5 |
3.0*5.0 |
3.8MM/48 |
|
8-5/8 |
219.1 |
0.040 |
3 |
323 |
10.5 |
3.0*5.0 |
3.8MM/48 |
|
10-3/4 |
273.1 |
0.010 |
3 |
206 |
11 |
3.0*5.0 |
3.8MM/50 |
|
10-3/4 |
273.1 |
0.020 |
3 |
191 |
11 |
3.0*5.0 |
3.8MM/50 |
|
10-3/4 |
273.1 |
0.040 |
3 |
167 |
11 |
3.0*5.0 |
3.8MM/50 |
Advantage of 10 " welding water well screen
1. Non-clogging construction.The V-shape section plane of wedge wire screens (Johnson type screens )creates
the continuous slot ,which can avoid blockage and make sure of the unimpeded water
2. Large Filtering Area:The consecutive slot of wedgewire screens (Johnson type screens )have wider open area.
and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure,
so it cab controlsand better.
Which can increase the water yield and pro-long service time of the well.
3. Long service life wire and support rods are all-welded ,which makes wedge wire screens (Johnson types screens )more robust and longer life.
4. Excellent construction strength.The longitudinal support rods and the continuous slot make the wedge wire screens (Johnson type screens )have more excellent pressure-resistant performance.
If you have any enquires please feel free to contact us !
Our factory Hengyuan hardware netting industry product co.,ltd located in Anping country , Hebei Province , China.
Our mainly products are : stainless steel vee sharped wire / wrap wire,johnson screeen , water well screen / rod based wire wrapped screen , wedge wire screen pipe , reverse wedge wire screen,screen nozzle / water and gas strainer ,sieve plate ,slot mesh ,ARC screen ,header and hub laterals & hub radial laterals , pipe base , crimped wire mesh / stainless steel wire mesh / perforated wire mesh etc .
·
