| Name: | Rotary Drum Screen | Technique: | Full Welded |
|---|---|---|---|
| Wire: | 2×3.5mm ；3×4.6mm | Support Rod: | Liquid/solid Filtration |
| Filter Type: | From Inside To Outside | Use: | For Waste Water |
| High Light: | water well sand screen,johnson stainless steel well screens |
||

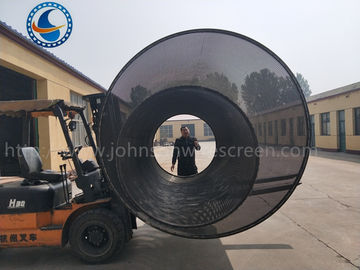

Large Roary Drum Screen Wedge Wire Cylinder Screen Filter For Solid Filtration
Hengyuan Factory mainly products are:stainless steel Vee-sharped wire / wrap wire , Johnson screen , water well screen / rod based wire wrapped screen , wedge wire screen pipe , reverse wedge wire screen , screen nozzle / water and gas strainer , sieve plate , slot mesh , ARC screen etc.
We are the manufacturer of Roary Drum Screen Filter for more than 15 years.
The size we uaual make as below:
Material: Low Carbon,Low Carbon Galvanized,Stainless Steel etc.
Diameter:29-1500mm
Slot size (mm):0.1, 0.2, 0.3, 0.5, 0.63, 0.75, 1.0, 1.5mm in usual, can make other slot as your request
Length: upto 6 meters
End connection:Welded Rings; Threaded couplings; Closed up; Flange and other type as your request.
The Wedge Wire Screen is also called Screen filter, Wound Screen, Water well screen.
It is made of Vee-shaped wire (surface wire) and support wire.
The surface wire is connected with the support rod by electric welding.
The strict continuous integrity makes the full-welded wire. The screen has the minimum amount of high-pressure resistance.
The smooth surface of the wire-wound screen is a filtering surface, and the slit is strip-shaped, belonging to the surface filtration form. Filter elements for various types of automatic filters (such as automatic backwashing, blade self-cleaning, scraper self-cleaning, and suction-type self-cleaning filters) are widely used for fluid filtration in various industries.
The main use of Wedge Wire Screen
1. Dewatering machine filter
2. Filter, such as diatomaceous earth filter
3. Centrifugal separator parts
4. Vibrating screen machine
5. Solid-liquid separation device coarse filter
6. River water and seawater water treatment equipment.
7. Various catalysts such as activated carbon and plasma exchange devices.
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| Length | Up to 4000mm | ||||||
| Outer Diameter | Up to 1500mm | ||||||
| Slot / Gap size | 20 micron to 3000 microns (Tolerance:+-5 micron) | ||||||
| Wedge Wire | 1x2 | 1.2x2 | 1.5x2 | 2x3 | 2x3.5 | 2.2x3.5 | 3x5 |
| Support Rod |
1.5x2.5 2x3 |
1.5x2.5 2x3 |
1.5*2.5 2x3 |
2x3 | 3*5 | 3x5 |
3x5 |
|
Rib bar |
ø10mm round bar | ||||||
| Note | Customized according to the requirement | ||||||
Pls feel free to contact me if you have any questions.
Hope we can work together soon.
