Product Details:
Payment & Shipping Terms:
|
| Name: | Reverse Wedge Wire Screen | Material: | SS 304 |
|---|---|---|---|
| ID: | 100mm | Length: | 1000mm |
| Slot: | 0.25mm | Wire Size: | 1.5*2mm Vee Shaped Wire |
| Support Rod: | 2*3mm Vee Shaped Wire | One End: | Blind Plate End |
| The Other End: | Open | Surface: | Acid Washing |
| High Light: | ss reverse wedge wire screen,ID100mm reverse wedge wire screen,CE reverse wedge wire screen |
||

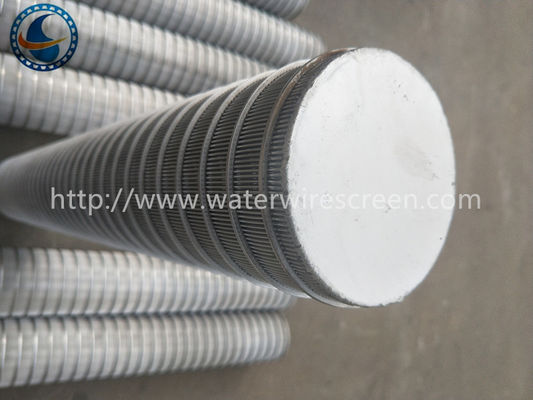

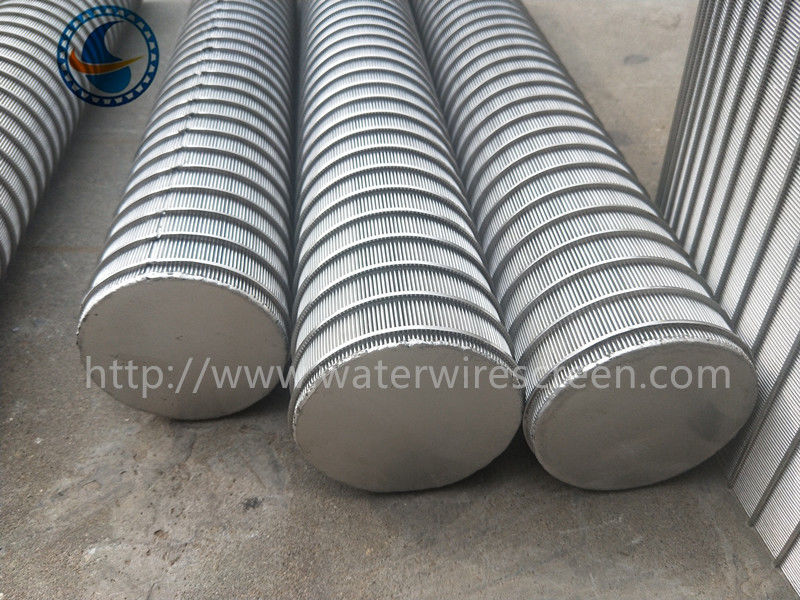

Stainless Steel 304 Reverse Wedge Wire Screen With Blind Plate Ends
Wedge Wire Screen Introduction:
Material: Stainless steel 304
Diameter:100mm
Slot: 0.25mm
Thickness:4mm
Wedge Wire Screen Normal Sizes:
| Material | SS304, SS304L, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| Length | Up to 4000mm | ||||||
| Inner Diameter | 60-1300mm | ||||||
| Slot / Gap | 25 micron to 2000 micron (Tolerance:+-5 micron) | ||||||
| Wedge Wire(mm) | 1x2 | 1.2x2 | 1.5x2 | 2x3 | 2x3.5 | 3x4.6 | 3x5 |
|
Support Rod (mm) |
2x3 | 2x3 | 2x3 | 2x3 |
3*4.6 3*5 3*6 |
3x4.6 3x5 3x6 |
3x5 3x6 |
| Ends | With Welded rings, Flange etc | ||||||
| Filter Type | From inside to outside | ||||||
| Reinforce | With or without | ||||||
| Note | All sizes are all customized, according to your requirement | ||||||
Wedge Wire Screen Application:
Architecture & Construction
Food & Beverage Screens
OEM Screen Components
Refining & Petrochemical
Waste Water Treatment
Coal & Mine
Chemical industry
Pharmacy
Food and beverage
Metallurgy
Coal mining
Environmental protectio
Stainless Steel Reverse Wedge Wire Screen is made with high-quality stainless steel wire strip processing into a trapezoidal section, winding through automated production equipment, on the support bar, and then processed by cutting, welding and other processes to form a screening product.
Reverse Wedge Wire Screen Filter type:
From inside to outside. Wire, Inside; Support rod, Outside.
1. Wire is the length of the screen pipe;
2. Support rod is the length of the screen pipe.
The cross-section of the screen strip is trapezoidal, the slots at lower part is wider than that of upper part of the screen.
