Product Details:
Payment & Shipping Terms:
|
| Name: | High Pressure Profile Wire Wedge Wire Screen Nozzle | Material: | Stainless Steel |
|---|---|---|---|
| Grade: | 316L | Slot Size: | 0.178 Mm |
| Diameter: | 53mm | Length: | 40mm |
| Thread Size: | M20 | Total Length: | 112mm |
| FOB Tianjin: | USD 11/ Piece | Surface: | Polished |
| High Light: | 316L Filter Nozzles For Water Treatment,316L Water Filter Nozzle,ISO Filter Nozzles For Water Treatment |
||

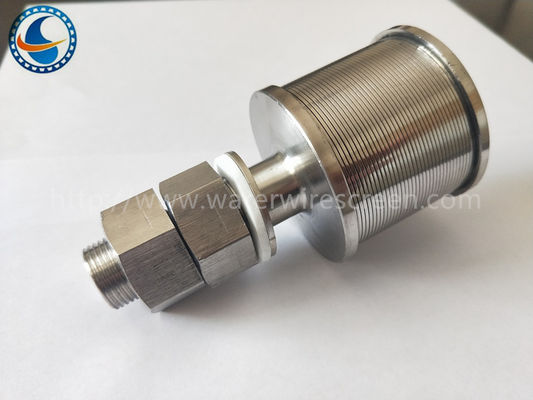

Stainless Steel 316L High Pressure Profile Wire Wedge Wire Screen Nozzle Description:
| Product Name | High Pressure Profile Wire WedgeWire Screen Nozzle |
| Material | Stainless Steel |
| Grade | 316L |
| Slot size | 0.178mm |
| Diameter | 53 mm |
| Screen Lenth | 40mm |
| Total Length | 112mm |
| Thread Size | 20 mm |
| Nutsert | 2 PCS |
| Gasket | 1 PCS steel gasket,1 PCS rubber mat |
High Pressure Profile Wire Wedge Wire Screen Nozzle Use:
High Pressure Profile Wire Wedge Wire Screen nozzle can be used in water treatment, chemical, petrochemical, pharmaceutical, biotechnology, power plant, ion exchange, yin-yang bed, mixed bed.
High Pressure Profile Wire Wedge Wire Screen Nozzle Regular Specifications:
| Type | Slot size | Specifications | Flow filter area 0.2mm slot ( reference) |
|||
| D | H | L | M | |||
| HY-PT-45-A | 0.2-0.5 | 45 | 25 | 90 | 25 | 280 |
| HY-PT-45-B | 0.2-0.5 | 45 | 35 | 100 | 25 | 380 |
| HY-PT-45-C | 0.2-0.5 | 45 | 45 | 110 | 25 | 550 |
| HY-PT-45-D | 0.2-0.5 | 45 | 35 | 55 | 25 | 380 |
| HY-PT-45-E | 0.2-0.5 | 45 | 45 | 65 | 25 | 550 |
| HY-PT-53-A | 0.2-0.5 | 53 | 35 | 100 | 25 | 450 |
| HY-PT-53-B | 0.2-0.5 | 53 | 45 | 110 | 25 | 580 |
| HY-PT-53-C | 0.2-0.5 | 53 | 55 | 120 | 32 | 700 |
| HY-PT-57-A | 0.2-0.5 | 57 | 35 | 100 | 32 | 530 |
| HY-PT-57-B | 0.2-0.5 | 57 | 45 | 110 | 32 | 680 |
| HY-PT-57-C | 0.2-0.5 | 57 | 55 | 120 | 32 | 830 |
| HY-PT-70-A | 0.2-0.5 | 70 | 40 | 105 | 32 | 650 |
| HY-PT-70-B | 0.2-0.5 | 70 | 55 | 115 | 32 |
810 |
