Product Details:
Payment & Shipping Terms:
|

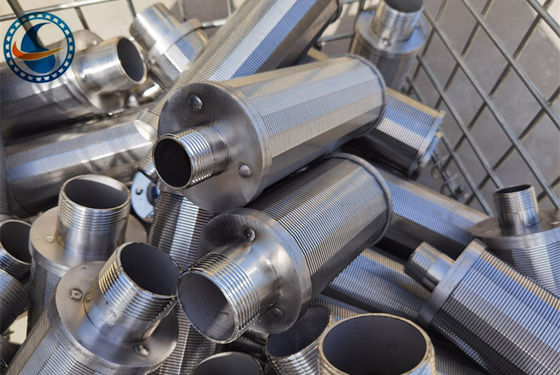

| Name: | Wedge Wire Screen Nozzle | Material: | Stainless Steel 304 |
|---|---|---|---|
| Diameter: | 76mm | Length Of Screen: | 185mm |
| Slot: | 0.5mm | Male Threaded: | R1 Male Threaded |
| Threaded Length: | 17mm | Nut: | No |
| High Light: | male threaded wedge wire screen nozzle,316l wedge wire screen nozzle,0.5mm slot wedge wire screen nozzle |
||
Water cap is widely used in power plant (ion exchanger), coal, metallurgy, papermaking, food and other industries in the water treatment of coarse and fine filtration.
Material: Stainless steel 304, 316, 316L, 321, 904L, 2205, 2507, C276… (SS304 material can meet most of the use environment)
Wire size: 1.50mm 1.80mm 2.00mm 2.5mm 3.00mm(or as your need)
Slot size: 0.04" - 0.3"
Length: Up to 6000mm
Diameter: 1" - 48"
Structure: Wedge wire screen pipe + Cover plate + Thread + Nuts & Gaskets
Application: Water treatment, sand filter, water softening, desalination.
1. Single head filter nozzle
2. Double head filter nozzle Long handle filter nozzle
3. Double flow filter nozzle
4. Flatwater filter nozzle, etc.
|
(NO.) |
(Type) |
(Ton) |
(Slot)(mm) |
(Size) |
0.2-0.25mm slot opening area of through-flow |
|||
| D | H | L | M | |||||
| 1 | TYS45-1-C | 0.5 | 0.2-0.5 | 45 | 45 | 95 | 24 | 550-690 |
| 2 | TYS53-2-B | 1 | 0.2-0.5 | 53 | 45 | 100 | 24 | 680-710 |
| 3 | TYS53-2-C | 1.5 | 0.2-0.5 | 53 | 50 | 110 | 32 | 800-920 |
| 4 | TYS57-3-B | 2 | 0.2-0.5 | 57 | 45 | 110 | 32 | 660-790 |
| 5 | TYS70-4-B | 3 | 0.2-0.5 | 70 | 55 | 120 | 32 | 905-1100 |
