| Name: | VEE-Wire Screw Extruder Filter Cylinder | Material: | Stainless Steel 316L |
|---|---|---|---|
| ID: | 50-1000mm | Length: | Upto 4000mm |
| Slot: | 0.025-100mm | Wire Size: | 1.5*2mm Vee Wire |
| Support Rod: | 2*3mm Vee Wire | Distance Of Rods: | 10-20mm |
| Ends: | Flange, Closed Up Etc. | Filter Type: | FITO |
| Surface: | Acid Washing | Package: | Wooden Box |
| High Light: | 316l johnson vee wire screen,id 50mm johnson vee wire screen,johnson 316l vee wire screen |
||

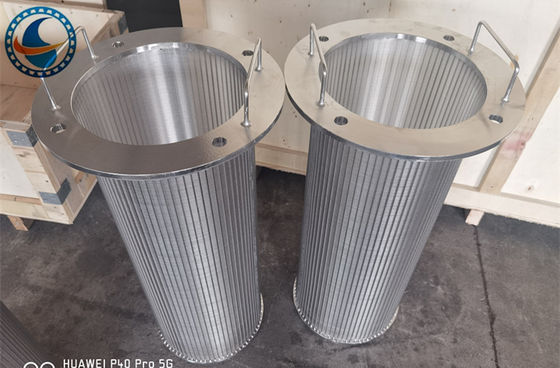

VEE-Wire Screw Extruder Filter Cylinder by Hengyuan has a number of longitudinal and transverse reinforcement bars, which greatly strengthens the extrusion strength of the sieve cylinder, especially suitable for the extruder with rotating blades inside the sieve cylinder.
At the same time, because the VEE-Wire Screw Extruder Filter is welded by trapezoidal wire and wrapped around the bracket, the slot of the filter barrel is small inside and large outside, so the sieve barrel is not easy to plug, greatly improving the production efficiency.
The inner diameter error of the sieve cylinder is within 0.3mm, and there is no friction with the rotating device inside the filter cylinder.
The accuracy range of VEE-Wire Screw Extruder Filter Cylinder is 0.025mm-10mm, reasonable structure design, long service life, is one of the better filter elements so far.
1. Special stainless steel wire, not easy to plug.
2. The surface of the filter cylinder is smooth without edges and corners
3. Easy to backwash, clean without dead Angle
4. Built-in scraper, brush, suction head cleaning device
Chemical, petrochemical, sewage treatment, iron and steel, urban water treatment, farmland irrigation, fruit and vegetable dehydration, solid-liquid separation, animal husbandry and manure dehydration.
|
Outside Diameter (mm) |
Length (mm) |
Slot (mm) |
Type of end connection |
|
29,38,57,63,76,89,108, 150,168,500,600 etc |
1000,2000,3000,4000 etc |
0.025,0.1,0.25,0.5,1.0 etc |
Welded rings, male/female threaded coupling, flange, closed up etc. |
|
Explanation |
Besides above of the specification screen pipe, we also can act according to the customer’s request. Diameter: ø29mm-ø1300mm. The length from the 100mm-6000mm. |
||
